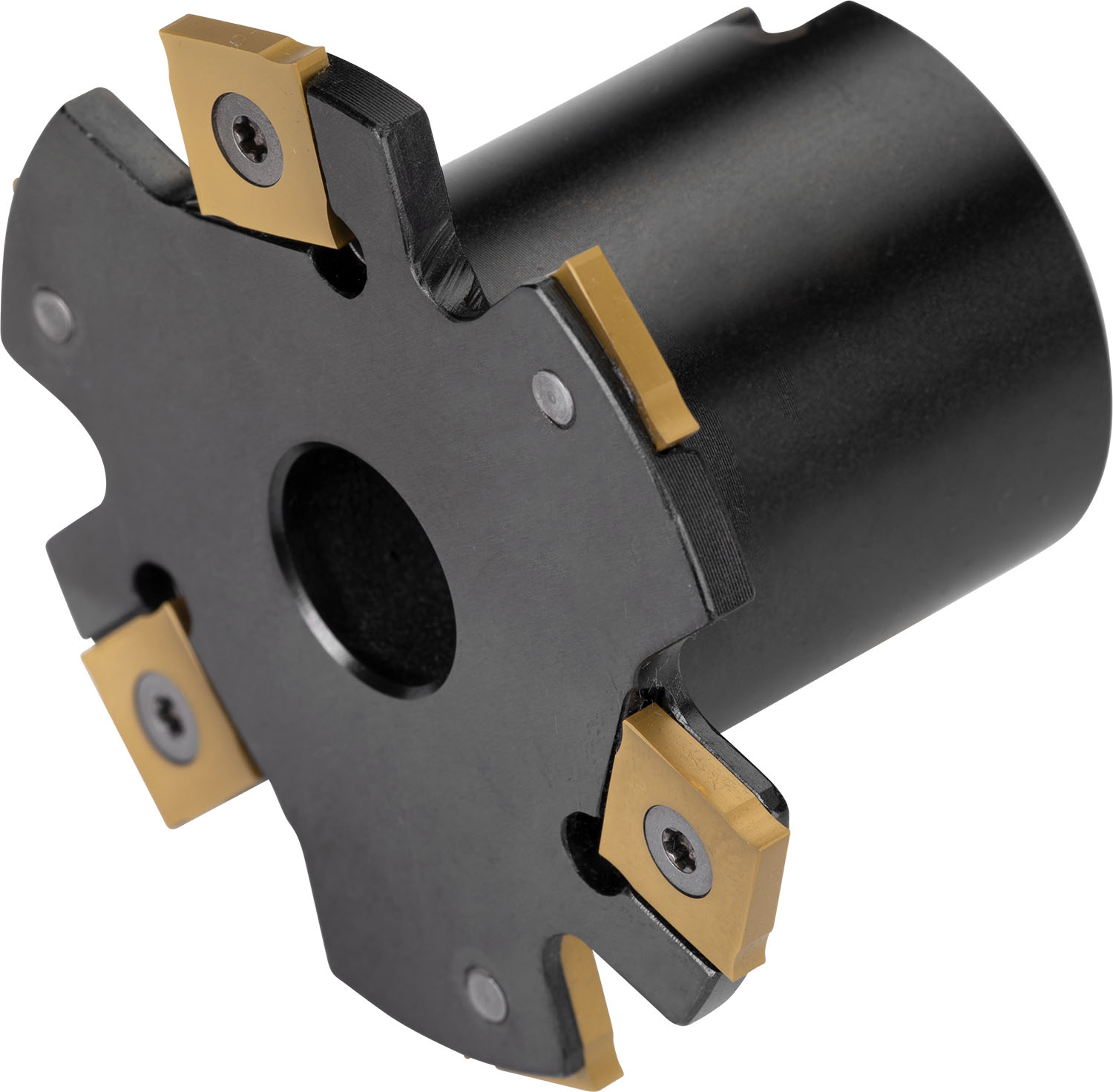

Disc mill with double positive geometry which utilises 6 off SNHQ 1102.. double-sided inserts, cutting diameter 2.500'' with 90 Degree approach angle and .750'' connection bore according to DIN 8030-A, 1.575'' protrusion length for deep slot milling with a width of cut of .250''.
Product Specifications
| EDP Number | 6789669 |
| Peripheral Effective Cutting Edge Count | 6 |
| Cutting Width (inch) | 0.25" |
| Max Cutting Depth (Inch) | 0.413" |
| Axial Rake Angle | 0.5 |
| Radial Rake Angle | 2.5 |
| Max Rotational Speed | 9500 |
| Connection Bore Diameter (Inch) | 0.75" |
| Hub Diameter (Inch) | 1.319" |
| Cutting Diameter (mm) | 63.5 mm |
| Cutting Diameter (Inch) | 2.5" |
| Overall Length (mm) | |
| Overall Length (Inch) | |
| Number of Peripheral Edges in The Tool | 6 |
| Country of origin | Czech Republic |
