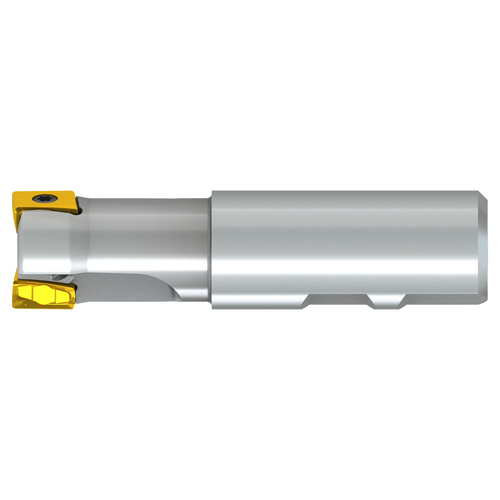

Shoulder mill with double negative geometry which utilises 2 of LNEX 1210.. double-sided inserts, cutting diameter 25mm with 90 degree approach angle and 25mm parallel shank according to DIN 1835A, 80mm usable and 170mm overall length, through coolant for face milling, shallow shoulder milling, deep shoulder milling, plunge milling and shallow slot milling with a maximum depth of cut of 10mm.
Product Specifications
| Manufacturer Part Number | 25A2R080A25-SLN12X-C |
| Cutting Diameter (mm) | 25.00mm |
| Connection Diameter (mm) | 25.00mm |
| Overall length (mm) | 170.00mm |
| Usable Length (mm) | 80.00mm |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Peripheral Effective Cutting Edge Count | 2 |
| Product Type | Square Shoulder Mill |
| Country of Origin | Czech Republic |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Pramet
Cutting Diameter (Inch):
0.9842"
Cutting Diameter (Decimal Inch):
63/64"
Cutting Diameter (mm):
25.00mm
Overall Length (Inch):
6-11/16"
Overall Length (Decimal Inch):
6.6929"
Overall length (mm):
170.00mm
interval quantity:
1
