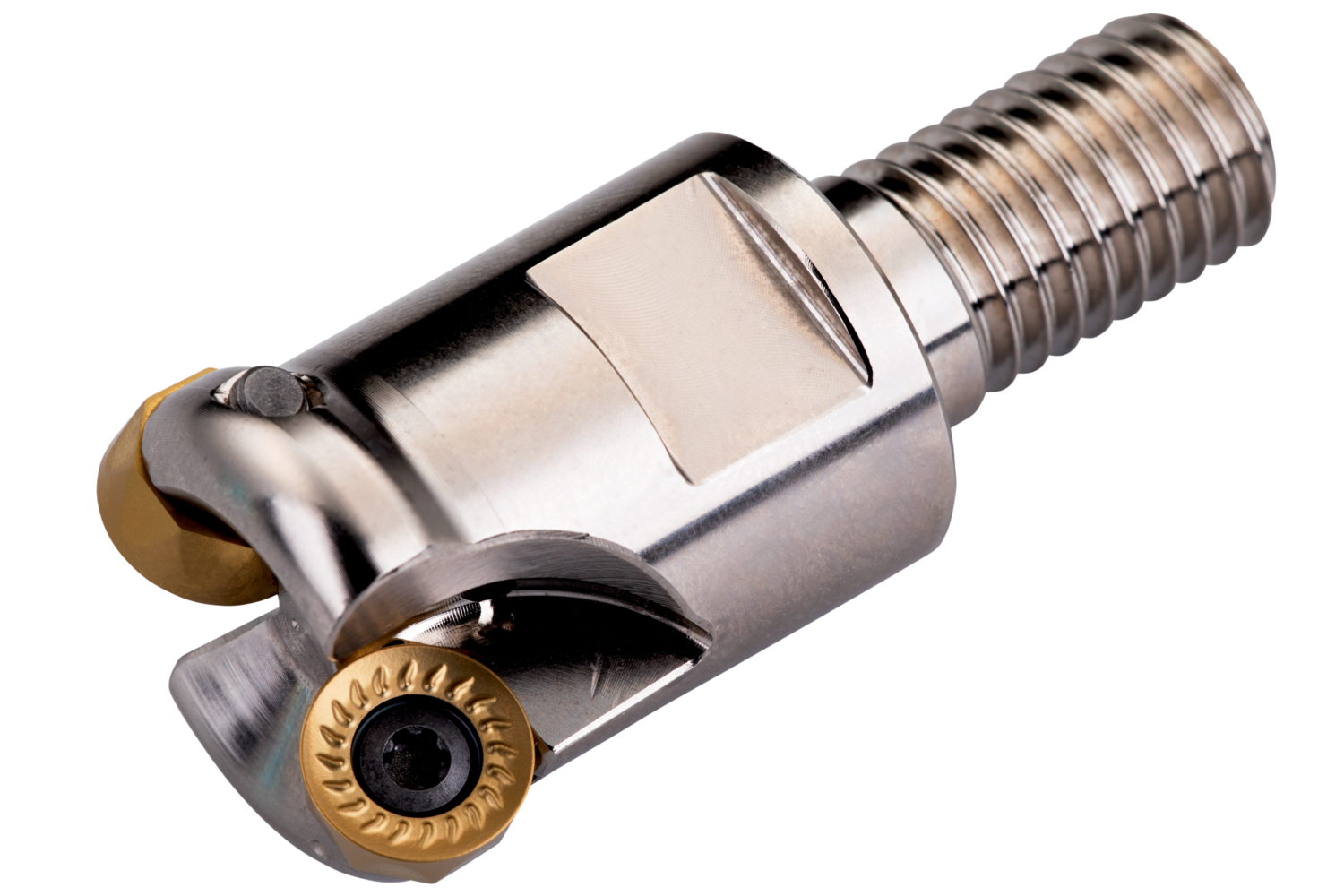

Copy face mill with double negative geometry which utilises 2 off RCMT 10T3MO.. single-sided inserts, cutting diameter 25 mm with M12 threaded shank for standard modular tool-holders, 32 mm protrusion length, through coolant for face milling, copy milling, ramping, helical milling and progressive plunge milling with a maximum depth of cut of 5.0 mm.
Product Specifications
| EDP Number | 7444201 |
| Peripheral Effective Cutting Edge Count | 2 |
| Insert Index Count | 2 |
| Coolant Supply Property | 1 |
| Axial Rake Angle | -7 |
| Radial Rake Angle | -3 |
| Max Rotational Speed | 20900 |
| Connection Diameter (mm) | 12.5 mm |
| Connection Diameter (Inch) | 0.492" |
| Hub Diameter (mm) | 21 mm |
| Cutting Diameter (mm) | 15 mm |
| Max Cutting Diameter (mm) | 25 mm |
| Cutting Diameter (Inch) | 0.591" |
| Overall Length (mm) | |
| Overall Length (Inch) | |
| Functional Length (mm) | 32 mm |
| Thread Diameter Size | M12 |
