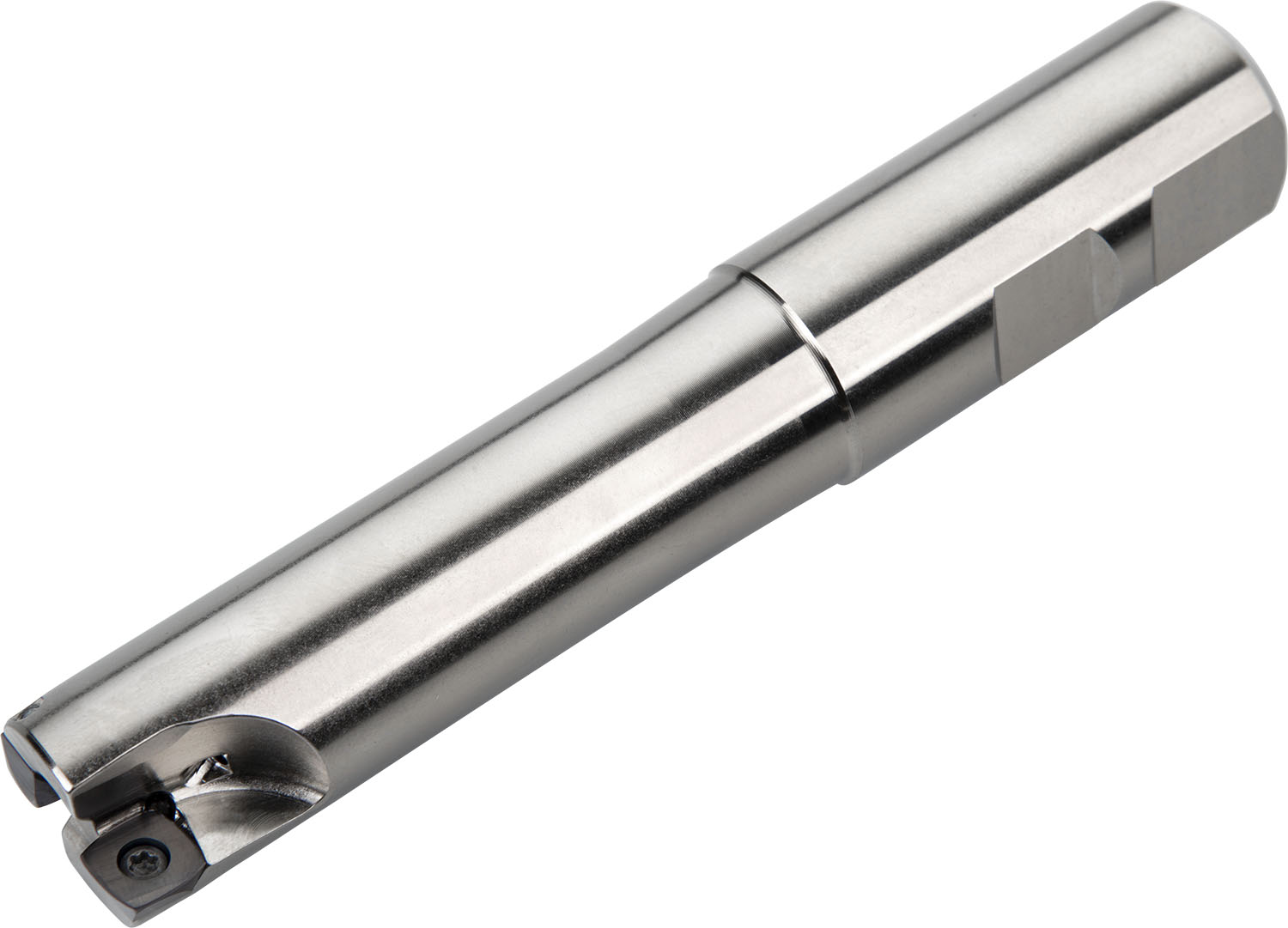

Chamfer mill with double negative geometry which utilises 3 off SDEW 0903.. or SDEX 0903.. single-sided inserts, cutting diameter 25 to maximum 37 mm with 45° approach angle and MT 3 morse taper shank according to DIN 228-1A, 124 mm overall length for chamfering with a maximum depth of cut of 8.0 mm.
Product Specifications
| EDP Number | 6757829 |
| Peripheral Effective Cutting Edge Count | 3 |
| Insert Index Count | 3 |
| Axial Rake Angle | 0 |
| Radial Rake Angle | 0 |
| Max Rotational Speed | 25800 |
| Connection Size Code Machine Side | 3 |
| Cutting Diameter (mm) | 25 mm |
| Max Cutting Diameter (mm) | 37 mm |
| Cutting Diameter (Inch) | 0.984" |
| Overall Length (mm) | 66 mm |
| Overall Length (Inch) | 2.598" |
| Functional Length (mm) | 43 mm |
