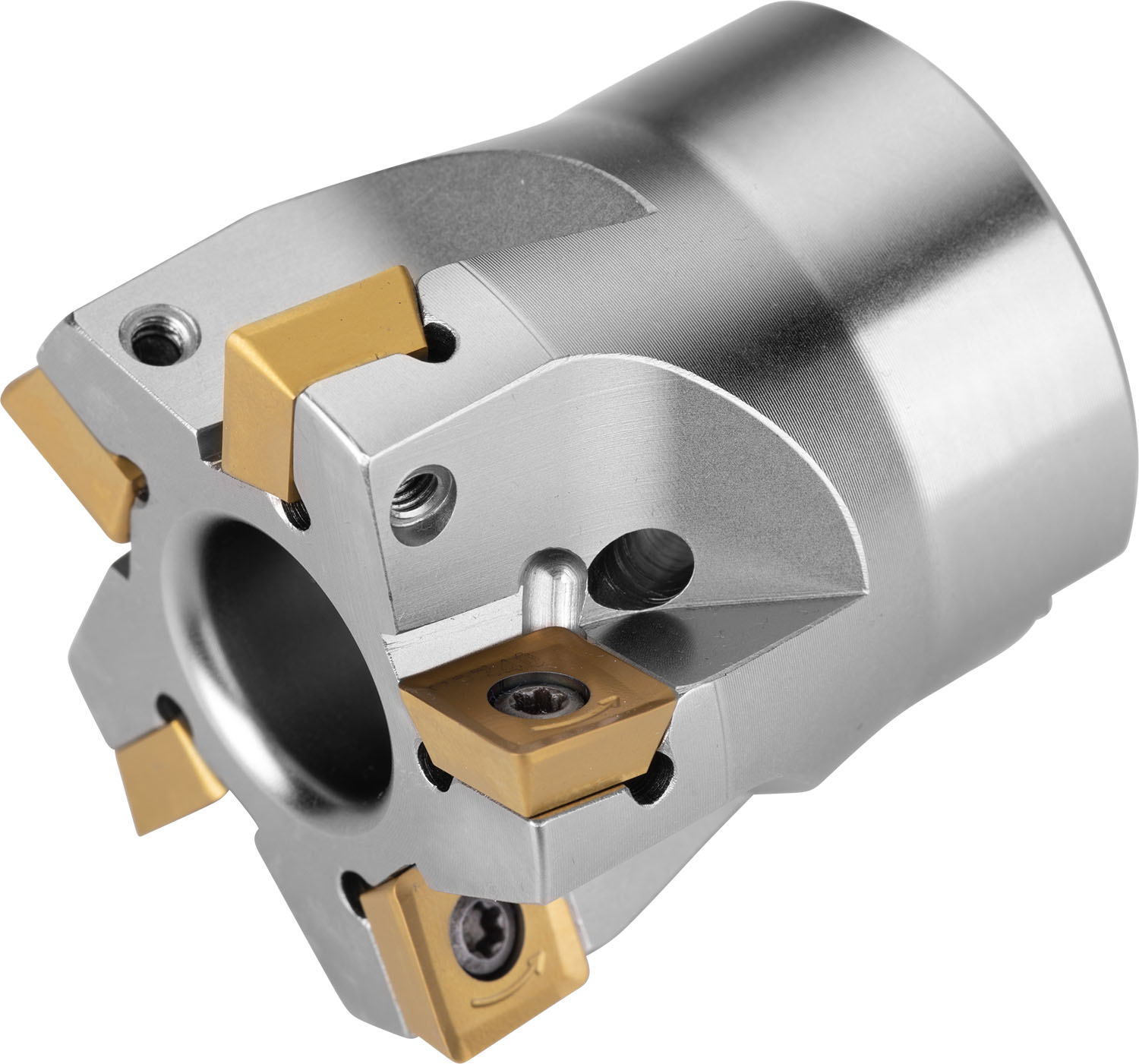

Shoulder mill with positve/negative geometry which utilises 9 off SOMT 09T3.. single-sided inserts, cutting diameter 3.000'' with 90 Degree approach angle and 1.000'' connection bore according to DIN 8030-A, 1.969'' protrusion length, through coolant for shallow shoulder milling, shallow slot milling and plunge milling with a maximum depth of cut of .315''.
Product Specifications
| EDP Number | 6789780 |
| Peripheral Effective Cutting Edge Count | 9 |
| Coolant Supply Property | 1 |
| Axial Rake Angle | 10 |
| Radial Rake Angle | -8.1 |
| Max Rotational Speed | 11900 |
| Connection Diameter (mm) | 21 mm |
| Connection Diameter (Inch) | 0.827" |
| Keyway Width (Inch) | 0.382" |
| Keyway Depth (Inch) | 0.224" |
| Cutting Diameter (mm) | 76.2 mm |
| Cutting Diameter (Inch) | 3" |
| Functional Length (Inch) | 1.969" |
| Country of origin | Czech Republic |
