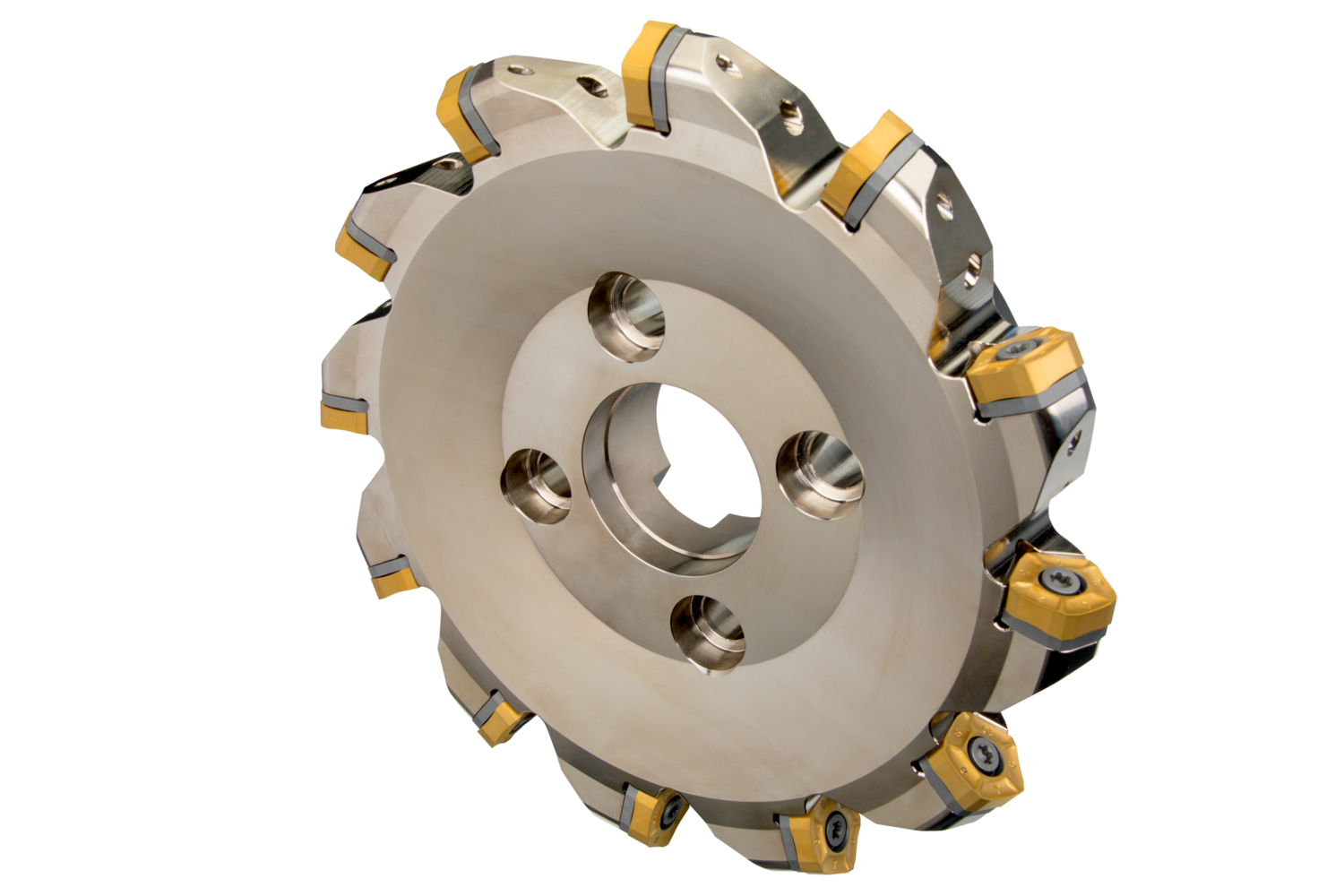

Face mill with double negative geometry which utilises 14 off PNMU 1308DN.. or PNMQ 1308DN.. double-sided inserts, cutting diameter 315 to maximum 330.8 mm with 57 Degree approach angle and 60 mm connection bore according to DIN 8030-C, 80 mm protrusion length for face milling with a maximum depth of cut of 10.0 mm.
Product Specifications
| EDP Number | 6761677 |
| Peripheral Effective Cutting Edge Count | 14 |
| Insert Index Count | 14 |
| Axial Rake Angle | -4 |
| Radial Rake Angle | -5 |
| Max Rotational Speed | 1900 |
| Connection Diameter (mm) | 60 mm |
| Connection Diameter (Inch) | 2.362" |
| Keyway Width (mm) | 25.7 mm |
| Keyway Depth (mm) | 14 mm |
| Cutting Diameter (mm) | 315 mm |
| Max Cutting Diameter (mm) | 330.8 mm |
| Cutting Diameter (Inch) | 12.402" |
| Functional Length (mm) | 80 mm |
| Diameter Bolt Circle 2 (mm) | 177.8 mm |
| Country of origin | Czech Republic |
