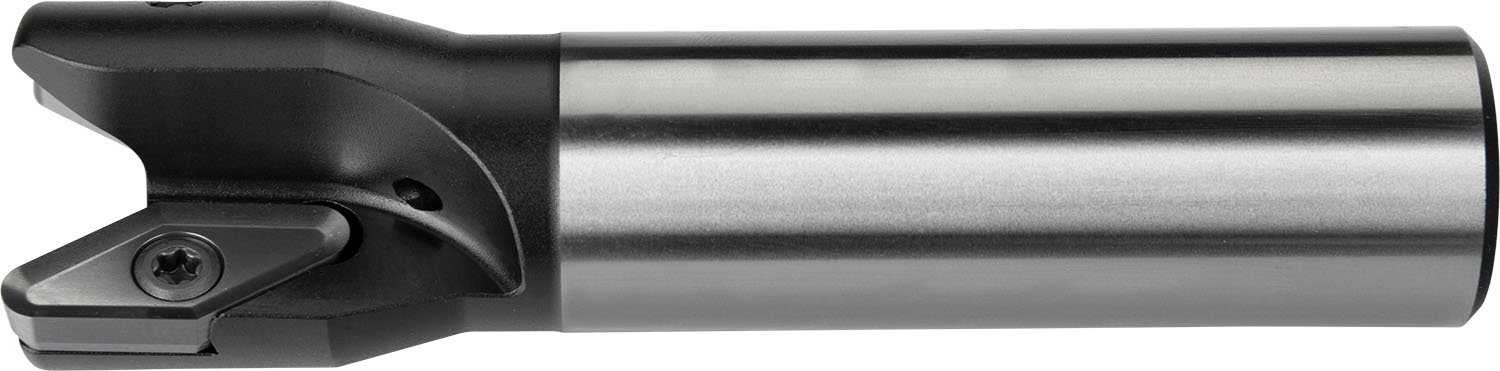

End mill with double positive geometry which utilises 2 off VCGT 220530F-FA single-sided inserts, cutting diameter 32 mm with 90 Degree approach angle and 25 mm parallel shank according to DIN 1835A, 120 mm overall length, through coolant for helical milling and progressive plunge milling with a maximum depth of cut of 3.0 (16.0) mm.
Product Specifications
| EDP Number | 6757989 |
| Peripheral Effective Cutting Edge Count | 2 |
| Insert Index Count | 2 |
| Coolant Supply Property | 1 |
| Axial Rake Angle | 3 |
| Radial Rake Angle | 4 |
| Max Rotational Speed | 10400 |
| Connection Diameter (mm) | 25 mm |
| Connection Diameter (Inch) | 0.984" |
| Cutting Diameter (mm) | 32 mm |
| Cutting Diameter (Inch) | 1.26" |
| Overall Length (mm) | |
| Overall Length (Inch) | |
| Usable Length (mm) | 45 mm |
| Country of origin | Czech Republic |
