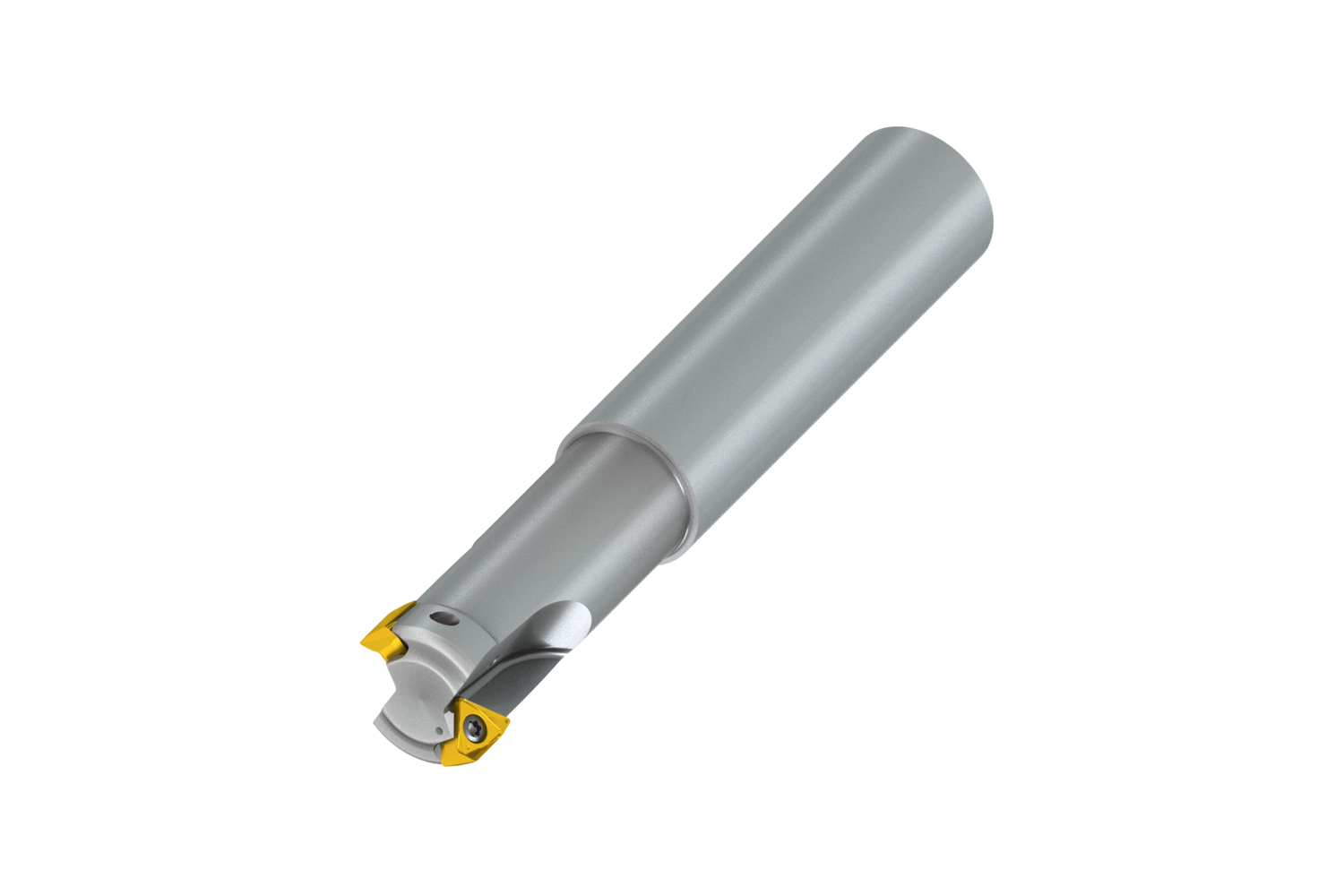

Pramet 8020916 | 1.260" Diameter x 7.677" OAL Indexable Square-Shoulder Face Mill

SKU: 23152388 Weight: 2.18 LBS Minimum Purchase: 1 unit
UPC:
$414.00 $368.46
(You save $45.54)
Shipping: Free Shipping

About This Item

Shoulder face mill with double negative geometry which utilises 2 of TNGX 1606.. double-sided inserts, cutting diameter 32 mm with 90 Degree approach angle and 32 mm parallel shank according to DIN 1835A, 80 mm usable and 195 mm overall length, through coolant for face milling, shallow shoulder milling, shallow slot milling and helical milling in pre-machined holes.

Product Specifications
EDP Number8020916
Peripheral Effective Cutting Edge Count2
Insert Index Count2
Coolant Supply Property1
Axial Rake Angle-9.5
Radial Rake Angle-16
Max Rotational Speed17500
Connection Diameter (mm)32 mm
Connection Diameter (Inch)1.26"
Cutting Diameter (mm)32 mm
Cutting Diameter (Inch)1.26"
Overall Length (mm)
Overall Length (Inch)
Usable Length (mm)80 mm
Country of originCzech Republic
