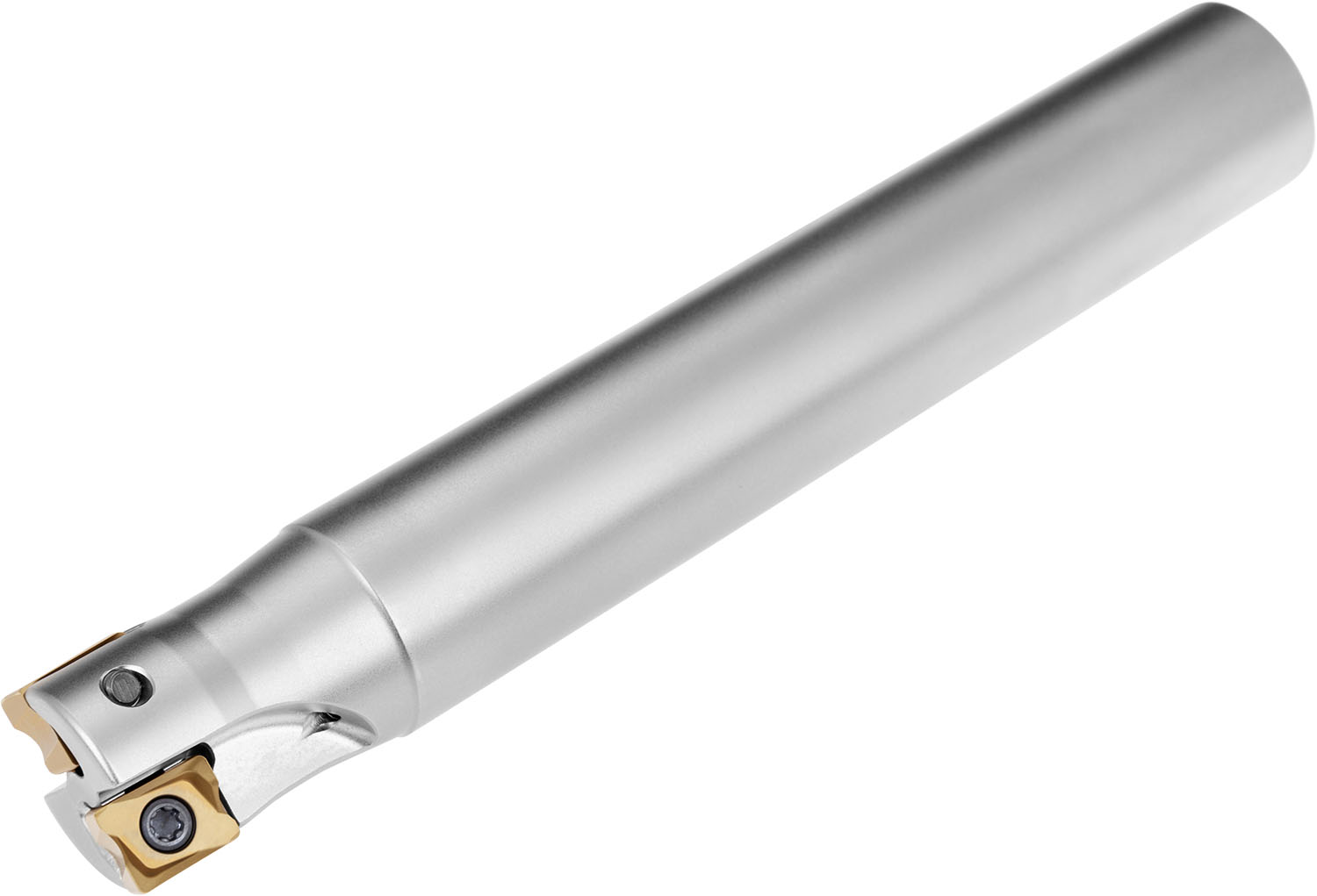

Shoulder mill with double negative geometry which utilises 2 off LNGX 1205.. or LNGU 1205.. double-sided inserts, cutting diameter 32 mm with 90° approach angle and 32 mm parallel shank according to DIN 1835A, 90 mm functional and 195 mm overall length, through coolant for shallow shoulder milling, shallow slot milling and plunge milling with a maximum depth of cut of 9.0 mm.
Product Specifications
| EDP Number | 6760299 |
| Peripheral Effective Cutting Edge Count | 2 |
| Insert Index Count | 2 |
| Coolant Supply Property | 1 |
| Axial Rake Angle | -6 |
| Radial Rake Angle | -15 |
| Max Rotational Speed | 17300 |
| Connection Diameter (mm) | 32 mm |
| Connection Diameter (Inch) | 1.26" |
| Cutting Diameter (mm) | 32 mm |
| Cutting Diameter (Inch) | 1.26" |
| Overall Length (mm) | |
| Overall Length (Inch) | |
| Usable Length (mm) | 90 mm |
