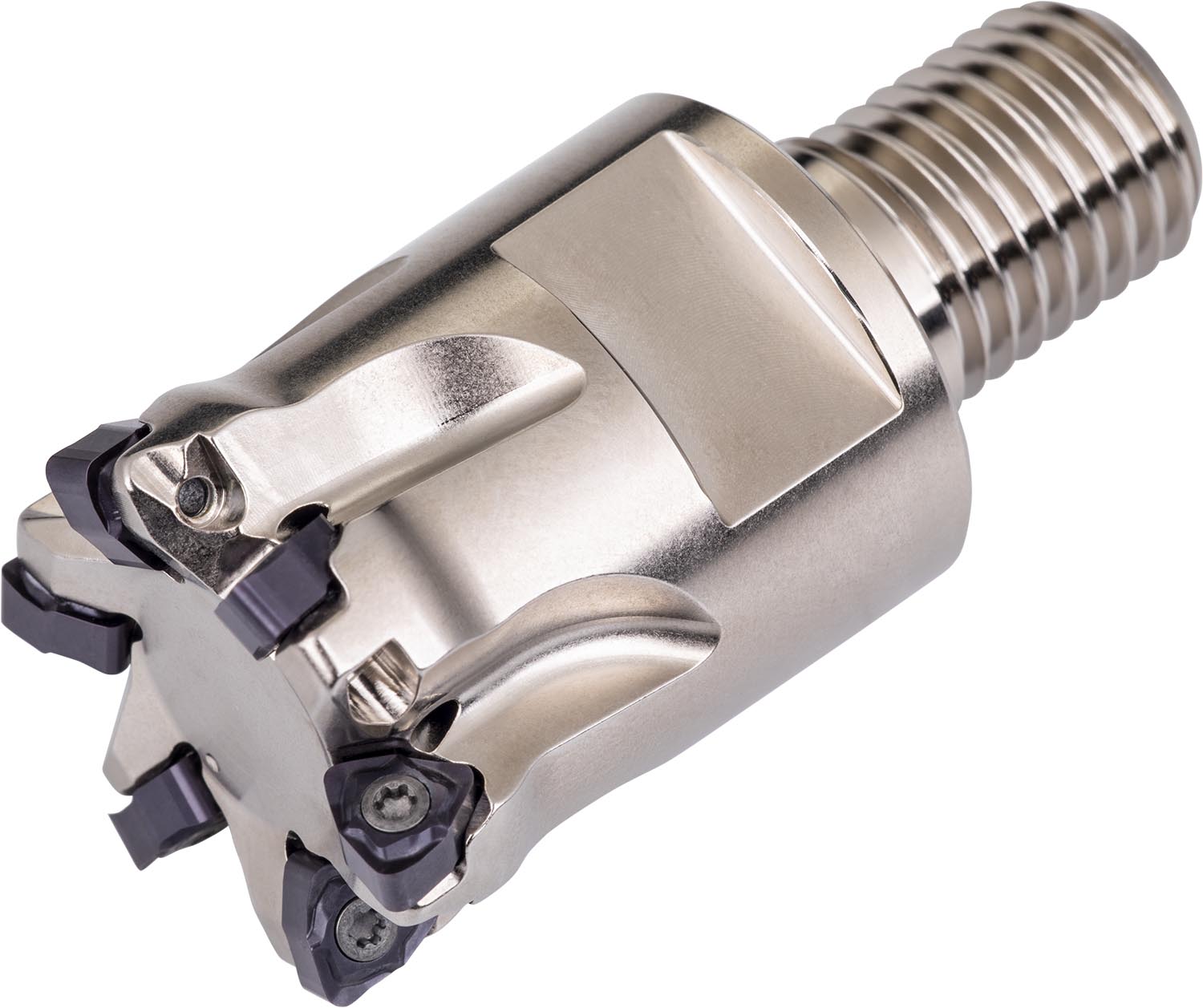

Copy face mill with double negative geometry which utilises 6 off WNHX 0403.. double-sided inserts, cutting diameter 32 mm with 93 Degree approach angle and M16 threaded shank for standard modular tool-holders, 40 mm protrusion length, through coolant and differential pitch for face milling, copy milling, shallow shoulder milling, deep shoulder milling, ramping and plunge milling with a maximum depth of cut of 0.5 mm.
Product Specifications
| EDP Number | 7636666 |
| Peripheral Effective Cutting Edge Count | 6 |
| Cutting Pitch Differential | 1 |
| Insert Index Count | 6 |
| Coolant Supply Property | 1 |
| Axial Rake Angle | -8 |
| Radial Rake Angle | -11.2 |
| Connection Diameter (mm) | 17 mm |
| Connection Diameter (Inch) | 0.669" |
| Cutting Diameter (mm) | 32 mm |
| Cutting Diameter (Inch) | 1.26" |
| Overall Length (mm) | |
| Overall Length (Inch) | |
| Functional Length (mm) | 40 mm |
| Thread Diameter Size | M16 |
| Country of origin | Czech Republic |
