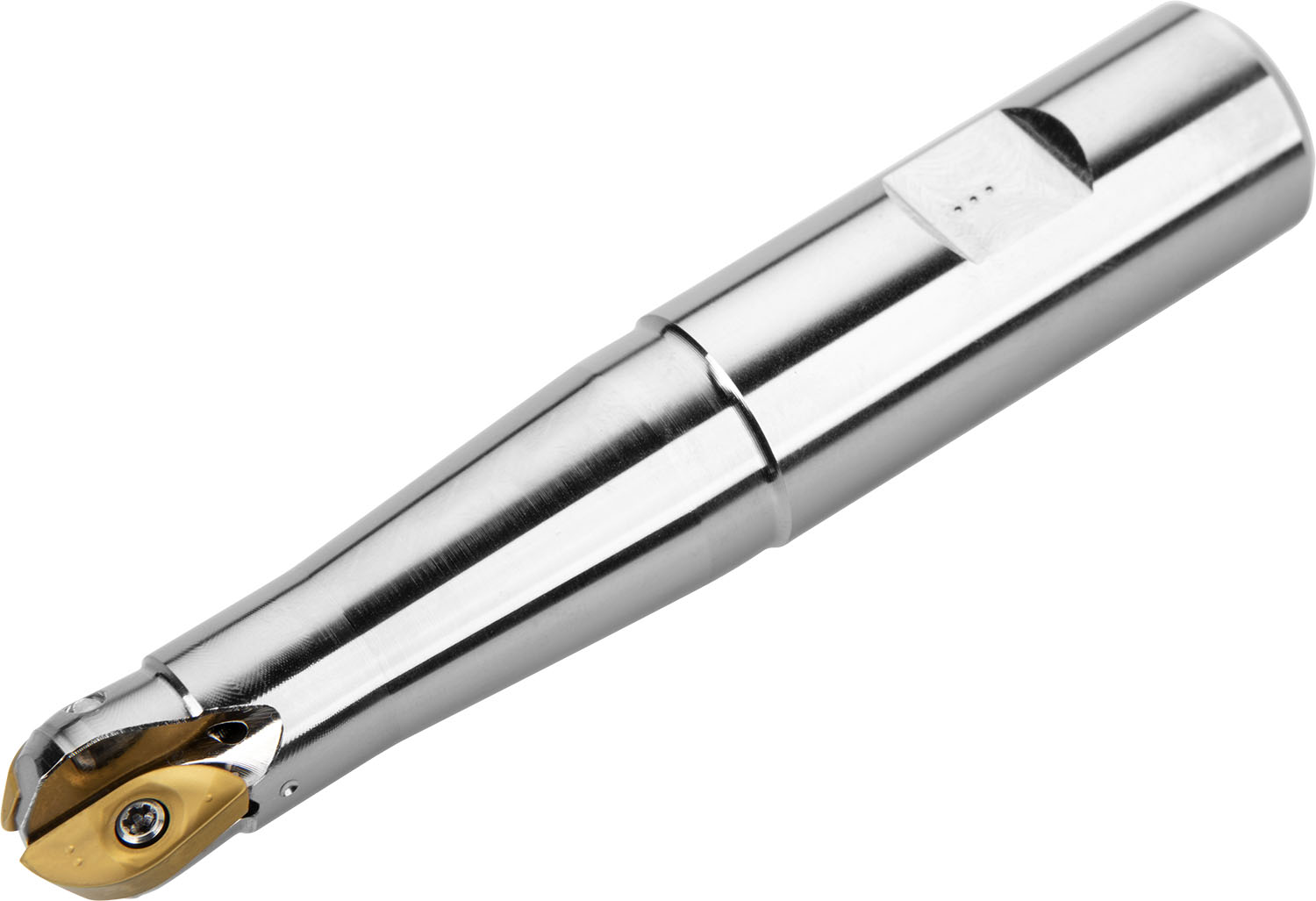

Copy end mill with double negative geometry which utilises 2 off ZP 32.. single-sided inserts, cutting diameter 32 mm with 32 mm Weldon shank according to DIN 1835B, 70 mm functional and 131 mm overall length, through coolant for copy milling with a maximum depth of cut of 28,6 mm.
Product Specifications
| EDP Number | 6761641 |
| Peripheral Effective Cutting Edge Count | 2 |
| Insert Index Count | 2 |
| Coolant Supply Property | 1 |
| Axial Rake Angle | -10 |
| Radial Rake Angle | 0 |
| Maximum Ramping Angle | 28.6 |
| Max Rotational Speed | 18500 |
| Connection Diameter (mm) | 32 mm |
| Connection Diameter (Inch) | 1.26" |
| Max Cutting Diameter (mm) | 32 mm |
| Overall Length (mm) | |
| Overall Length (Inch) | |
| Usable Length (mm) | 70 mm |
| Functional Length (mm) | 95.5 mm |
