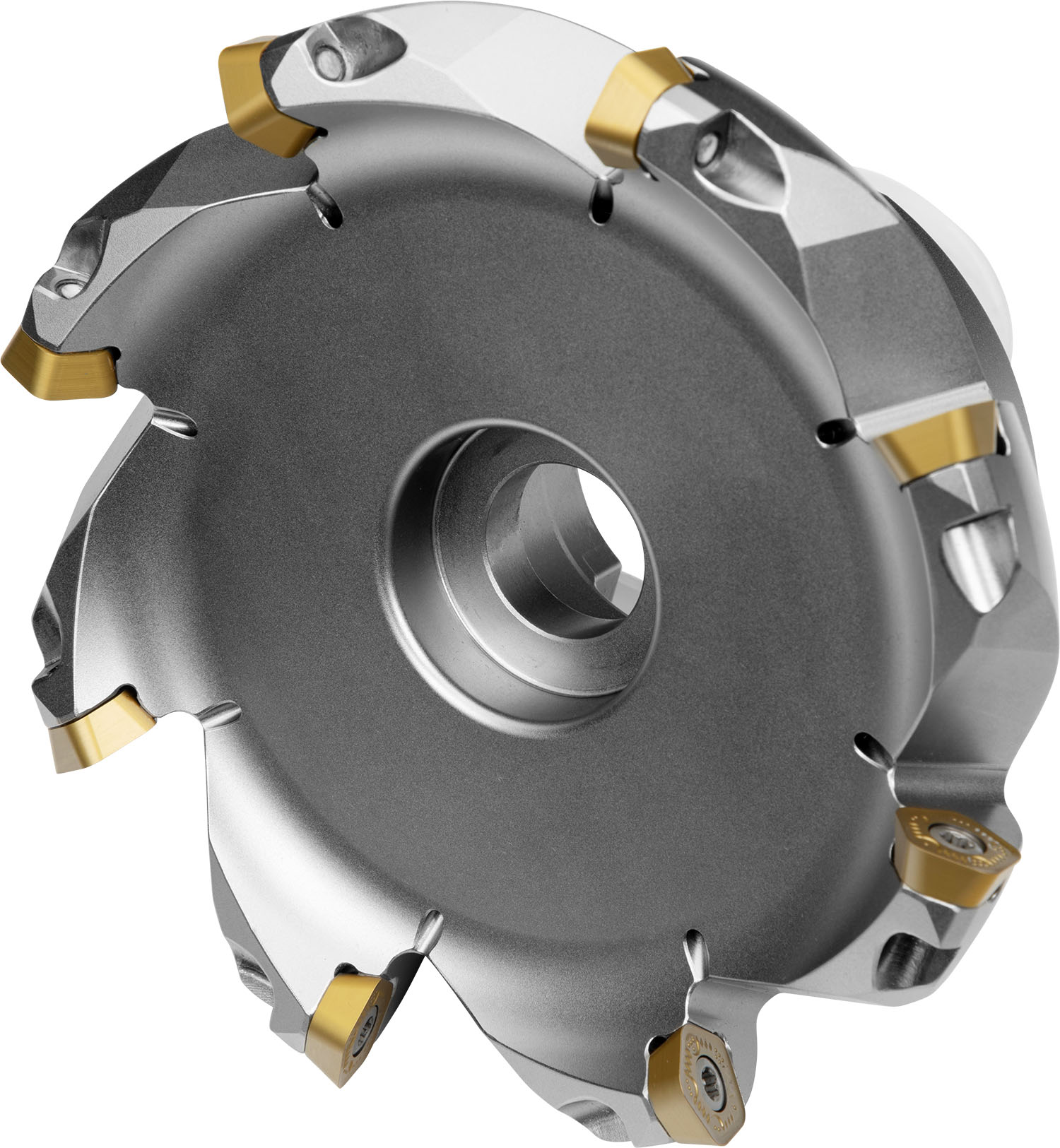

High feed cutter with positve/negative geometry which utilises 8 off PD.X 09, PDKT 09 or PDMW 09 single-sided inserts, cutting diameter 4.000'' with 19 Degree approach angle and 1.500'' connection bore according to DIN 8030-A, 1.969'' protrusion length, through coolant for face milling with a maximum depth of cut of .079''.
Product Specifications
| EDP Number | 6792985 |
| Peripheral Effective Cutting Edge Count | 8 |
| Coolant Supply Property | 1 |
| Axial Rake Angle | 10 |
| Radial Rake Angle | -1 |
| Max Rotational Speed | 7400 |
| Connection Diameter (mm) | 38.1 mm |
| Connection Diameter (Inch) | 1.5" |
| Counterbore Diameter Connection Bore (Inch) | 1.417" |
| Cutting Diameter (mm) | 87.1 mm |
| Cutting Diameter (Inch) | 3.431" |
| Max Cutting Diameter (Inch) | 4" |
| Functional Length (Inch) | 1.969" |
| Country of origin | Czech Republic |
