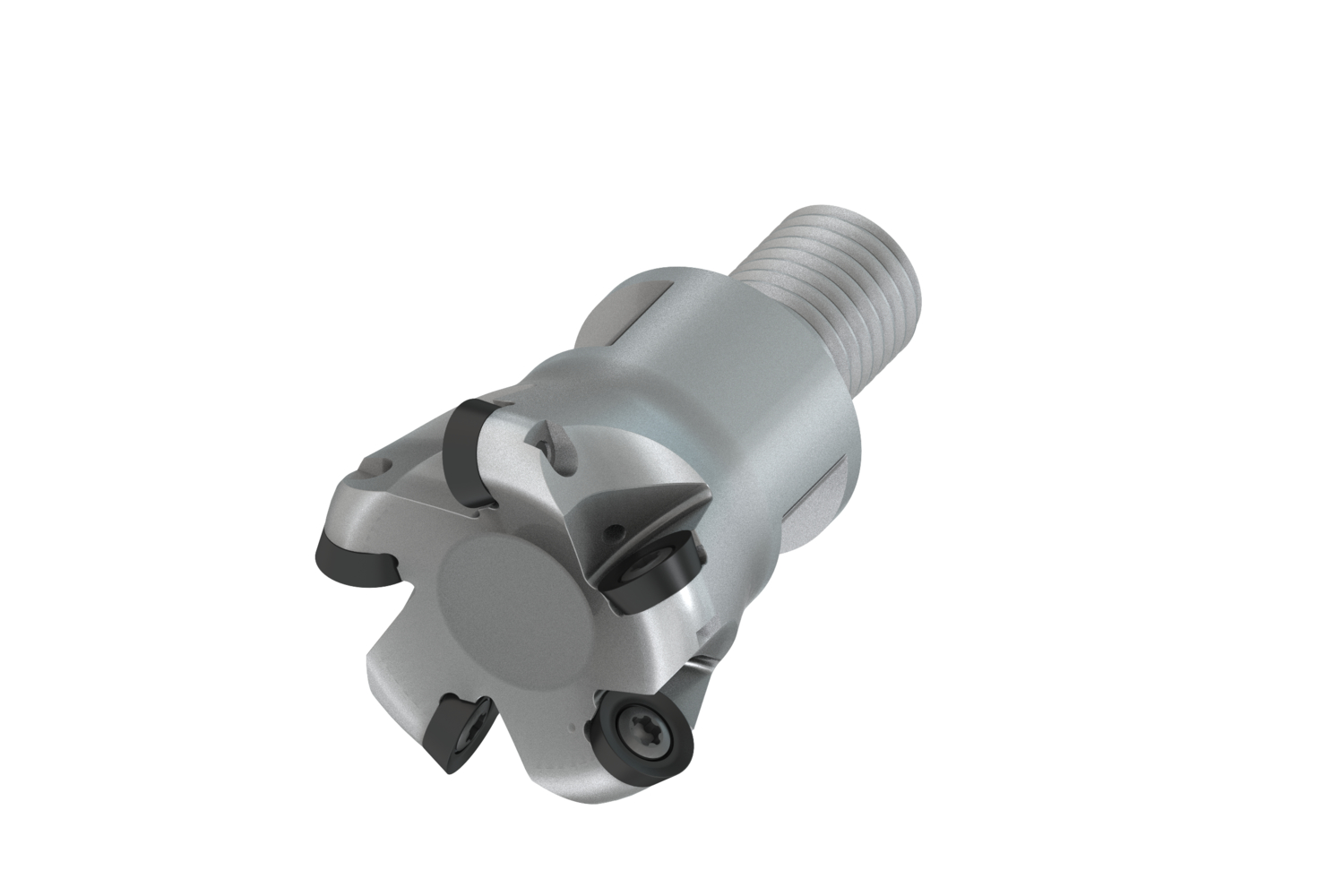

Copy face mill with double negative geometry which utilises 5 of RD.. 1003MOT or RDHT 1003MO-FA single-sided inserts, cutting diameter to maximum 42 mm with M16 threaded shank for standard modular tool-holders, 42 mm functional and 65 mm protrusion length, through coolant for face milling, copy milling, ramping, progressive plunge milling and helical milling with a maximum depth of cut of 2.5 mm.
Product Specifications
| EDP Number | 8025179 |
| Peripheral Effective Cutting Edge Count | 5 |
| Insert Index Count | 5 |
| Maximum Depth of Cut (mm) | 2.5 mm |
| Coolant Supply Property | 1 |
| Axial Rake Angle | 0 |
| Radial Rake Angle | 0 |
| Max Rotational Speed | 21200 |
| Connection Diameter (mm) | 17 mm |
| Connection Diameter (Inch) | 0.669" |
| Hub Diameter (mm) | 29 mm |
| Cutting Diameter (mm) | 32 mm |
| Max Cutting Diameter (mm) | 42 mm |
| Cutting Diameter (Inch) | 1.26" |
| Overall Length (mm) | |
| Overall Length (Inch) | |
| Functional Length (mm) | 42 mm |
| Thread Diameter Size | M16 |
