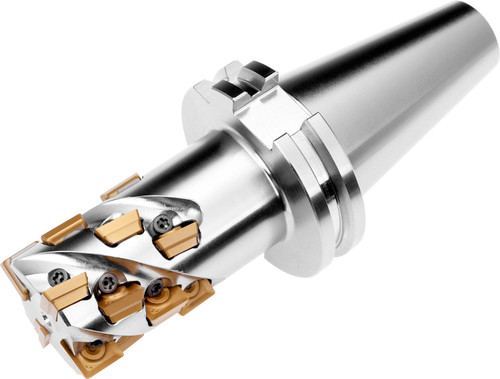

Shoulder mill with extended flute and exchangeable head, with positve/negative geometry which utilises 2 off APE. 1504.. and 16 SPE. 1204.. single-sided inserts, cutting diameter 50 mm with 90° approach angle and BT 50 taper shank according to JIS B 6339, 76 mm functional and 251 mm overall length for deep shoulder milling and deep slot milling with a maximum depth of cut of 76 mm.
Product Specifications
| EDP Number | 6757817 |
| Insert Index Count | 18 |
| Maximum Depth of Cut (mm) | 76 mm |
| Flute Count | 4 |
| Axial Rake Angle | 7 |
| Radial Rake Angle | 0 |
| Max Rotational Speed | 9500 |
| Connection Size Code Machine Side | 50 |
| Cutting Diameter (mm) | 50 mm |
| Cutting Diameter (Inch) | 1.969" |
| Overall Length (mm) | 195 mm |
| Overall Length (Inch) | 7.677" |
| Functional Length (mm) | 124 mm |
