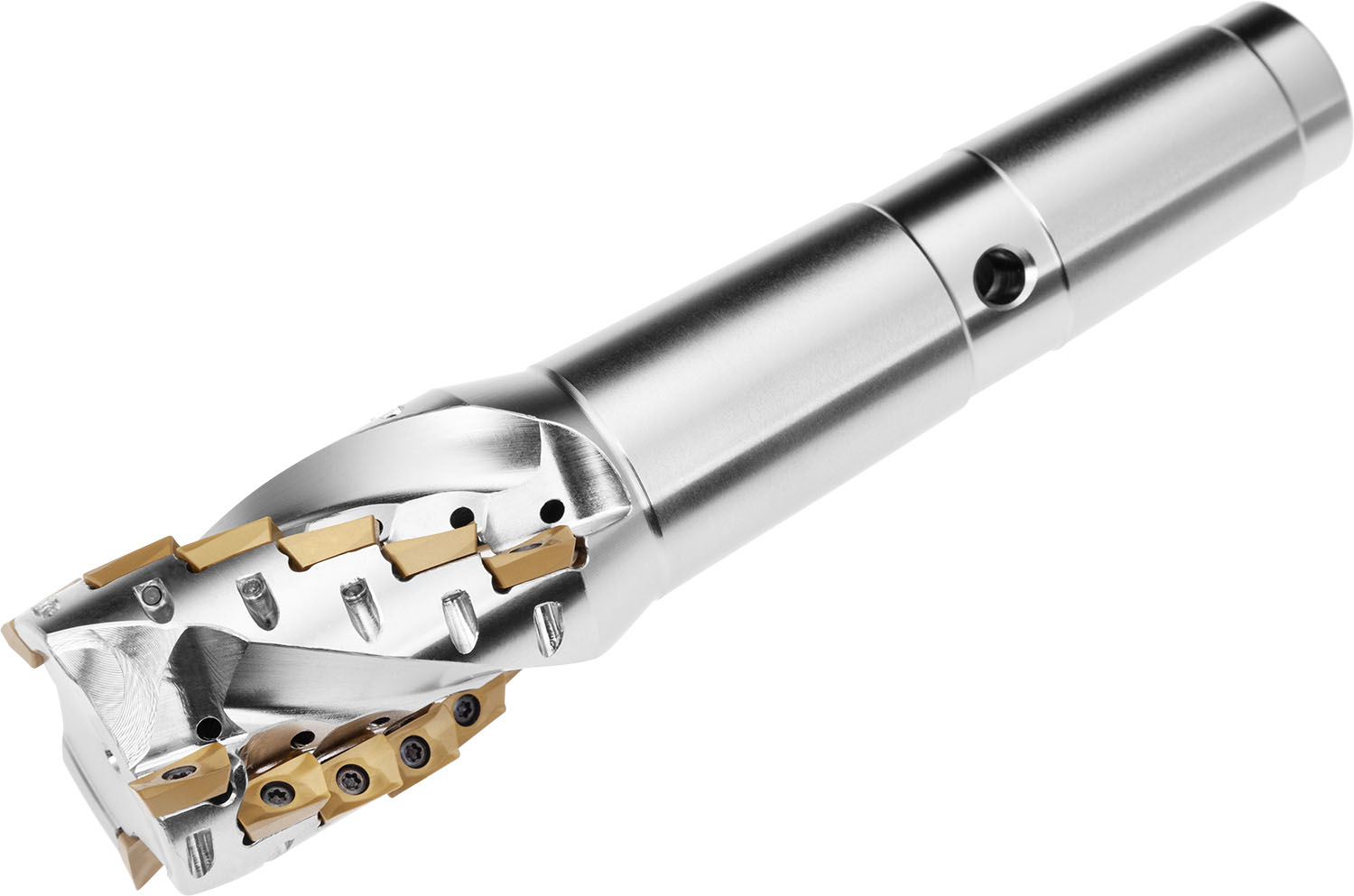

Shoulder mill with extended flute with positve/negative geometry which utilises 18 off ADMX 11T3.. single-sided inserts, cutting diameter 40 mm with 90 Degree approach angle and MT 4 morse taper shank according to DIN 228-1A, 56 mm functional and 177.5 mm overall length, through coolant for deep shoulder milling and deep slot milling with a maximum depth of cut of 56 mm.
Product Specifications
| EDP Number | 6759649 |
| Peripheral Effective Cutting Edge Count | 18 |
| Insert Index Count | 18 |
| Maximum Depth of Cut (mm) | 56 mm |
| Flute Count | 3 |
| Coolant Supply Property | 1 |
| Axial Rake Angle | 11 |
| Radial Rake Angle | -8.1 |
| Max Rotational Speed | 19100 |
| Connection Size Code Machine Side | 4 |
| Cutting Diameter (mm) | 40 mm |
| Cutting Diameter (Inch) | 1.575" |
| Overall Length (mm) | |
| Overall Length (Inch) | |
| Functional Length (mm) | 75 mm |
| Country of origin | Czech Republic |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Related Products
Pramet
Pramet 6760173 | 1.969" Diameter x 40 mm Length Indexable Square-Shoulder End Mill
$523.00
$465.47
Pramet
Pramet 6757986 | 1.969" Diameter x 56 mm Length Indexable Square-Shoulder End Mill
$574.00
$510.86
Pramet
Pramet 6761739 | 1.969" Diameter x 78 mm Length Indexable Square-Shoulder End Mill
$1,464.00
$1,302.96
Brand:
Pramet
Cutting Diameter (Decimal Inch):
1.5750"
Cutting Diameter (mm):
40.00mm
Overall Length/Projection (Decimal Inch):
6.9880"
Overall Length/Projection (mm):
177.50mm
Through Coolant:
Yes
interval quantity:
1
