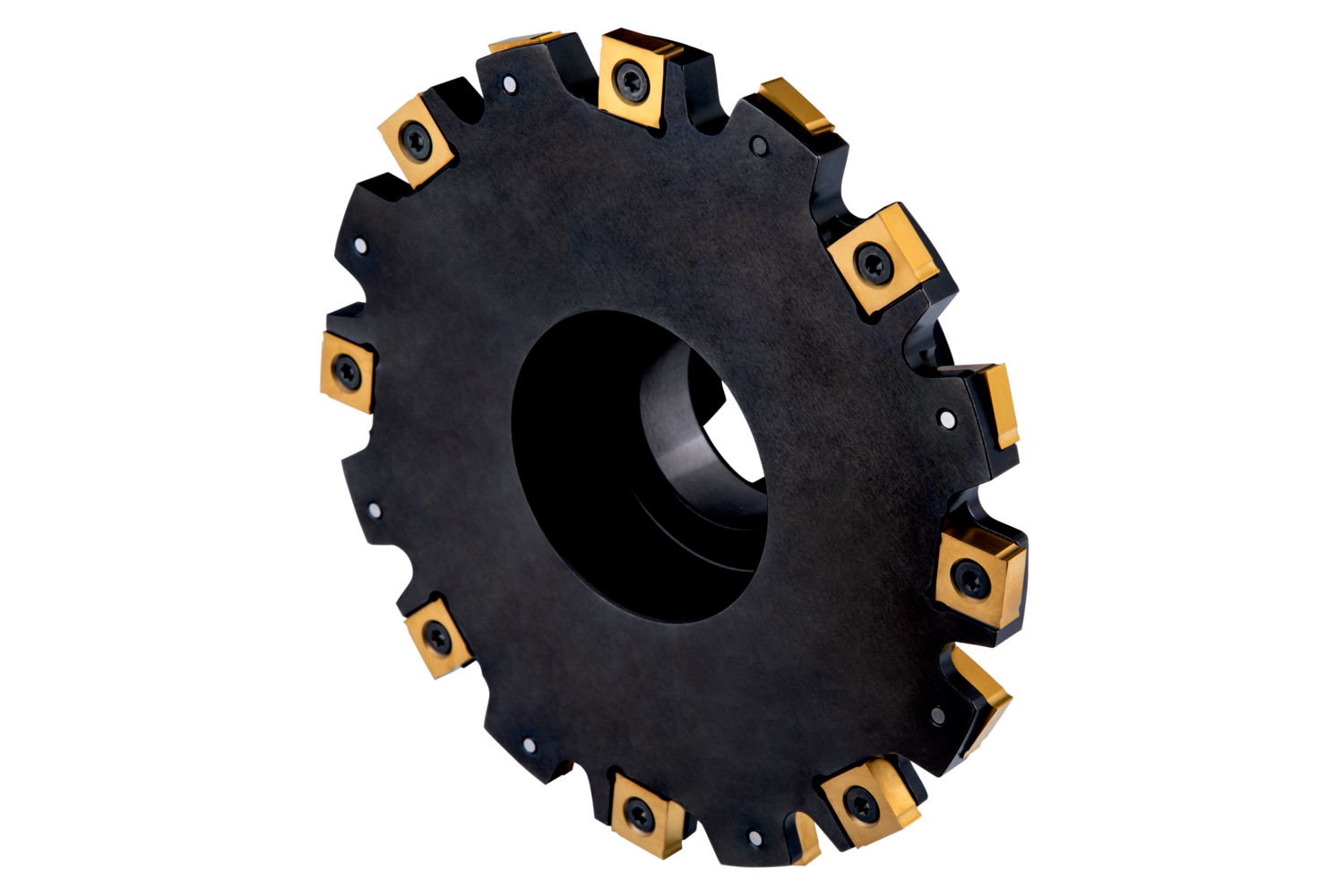

Disc mill with double positive geometry which utilises 16 off SNHQ 1102.. double-sided inserts, cutting diameter 6.000'' with 90° approach angle and 1.500'' connection bore according to DIN 8030-B, 1.969'' protrusion length for deep slot milling with a width of cut of .375''.
Product Specifications
| EDP Number | 6789681 |
| Peripheral Effective Cutting Edge Count | 16 |
| Cutting Width (inch) | 0.375" |
| Max Cutting Depth (Inch) | 1.457" |
| Axial Rake Angle | 0.5 |
| Radial Rake Angle | 2.5 |
| Max Rotational Speed | 5900 |
| Connection Bore Diameter (Inch) | 1.5" |
| Hub Diameter (Inch) | 2.756" |
| Cutting Diameter (mm) | 152.4 mm |
| Cutting Diameter (Inch) | 6" |
| Overall Length (mm) | |
| Overall Length (Inch) | |
| Number of Peripheral Edges in The Tool | 16 |
