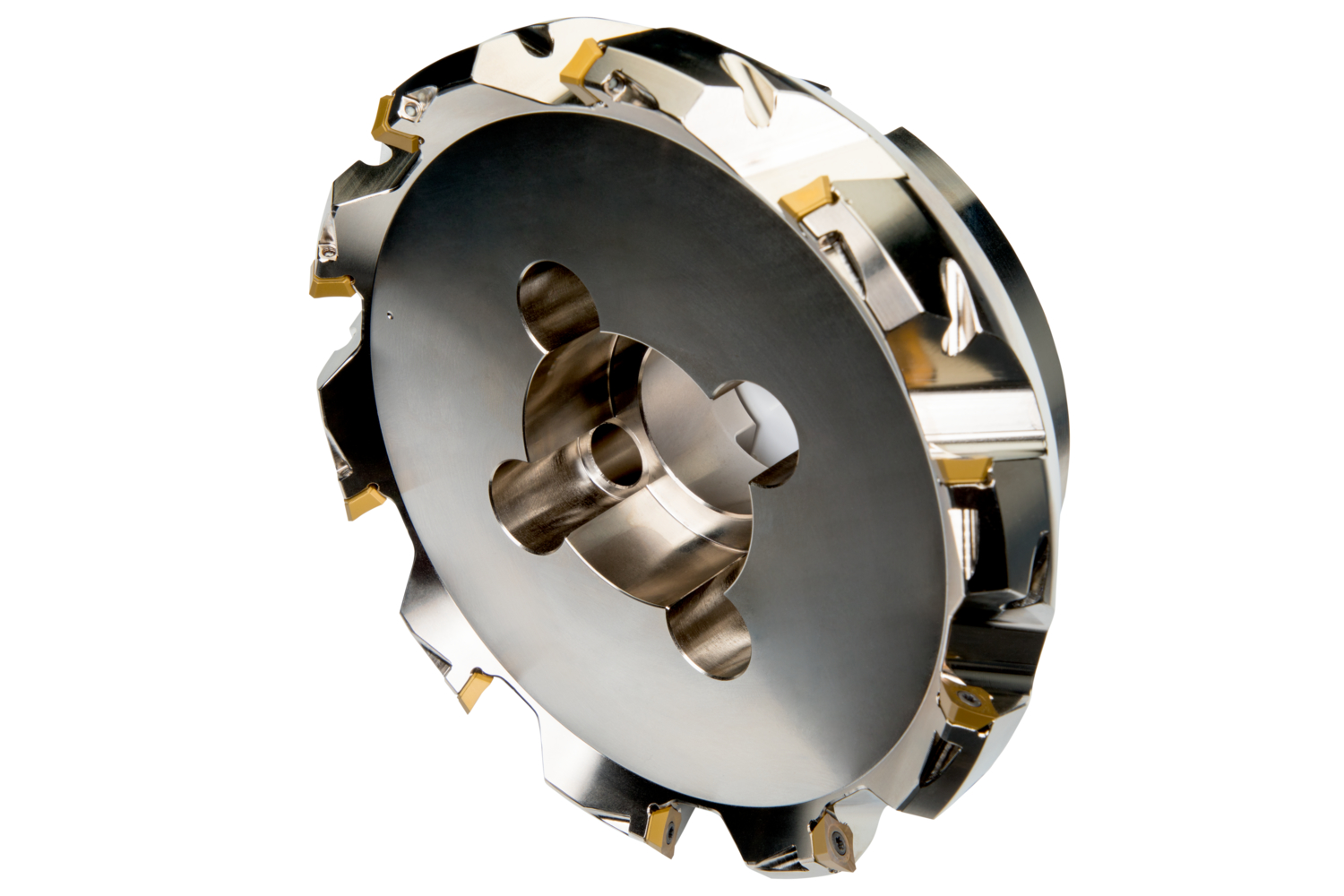

Face mill with positve/negative geometry which utilises 10 off SEET 09T3AF.. or SEMT 09T3AF.. single-sided inserts, cutting diameter 6.000 to maximum 6.378'' with 45 Degree approach angle and 2.000'' connection bore according to DIN 8030-B, 2.480'' protrusion length for face milling and chamfering with a maximum depth of cut of .177''.
Product Specifications
| EDP Number | 6789745 |
| Peripheral Effective Cutting Edge Count | 10 |
| Cutting Pitch Differential | 1 |
| Axial Rake Angle | 20 |
| Radial Rake Angle | -5 |
| Max Rotational Speed | 8700 |
| Connection Diameter (mm) | 50.8 mm |
| Connection Diameter (Inch) | 2" |
| Counterbore Diameter Connection Bore (Inch) | 3.465" |
| Keyway Width (Inch) | 0.756" |
| Keyway Depth (Inch) | 0.445" |
| Cutting Diameter (mm) | 152.4 mm |
| Cutting Diameter (Inch) | 6" |
| Max Cutting Diameter (Inch) | 6.378" |
| Functional Length (Inch) | 2.48" |
| Country of origin | Czech Republic |
