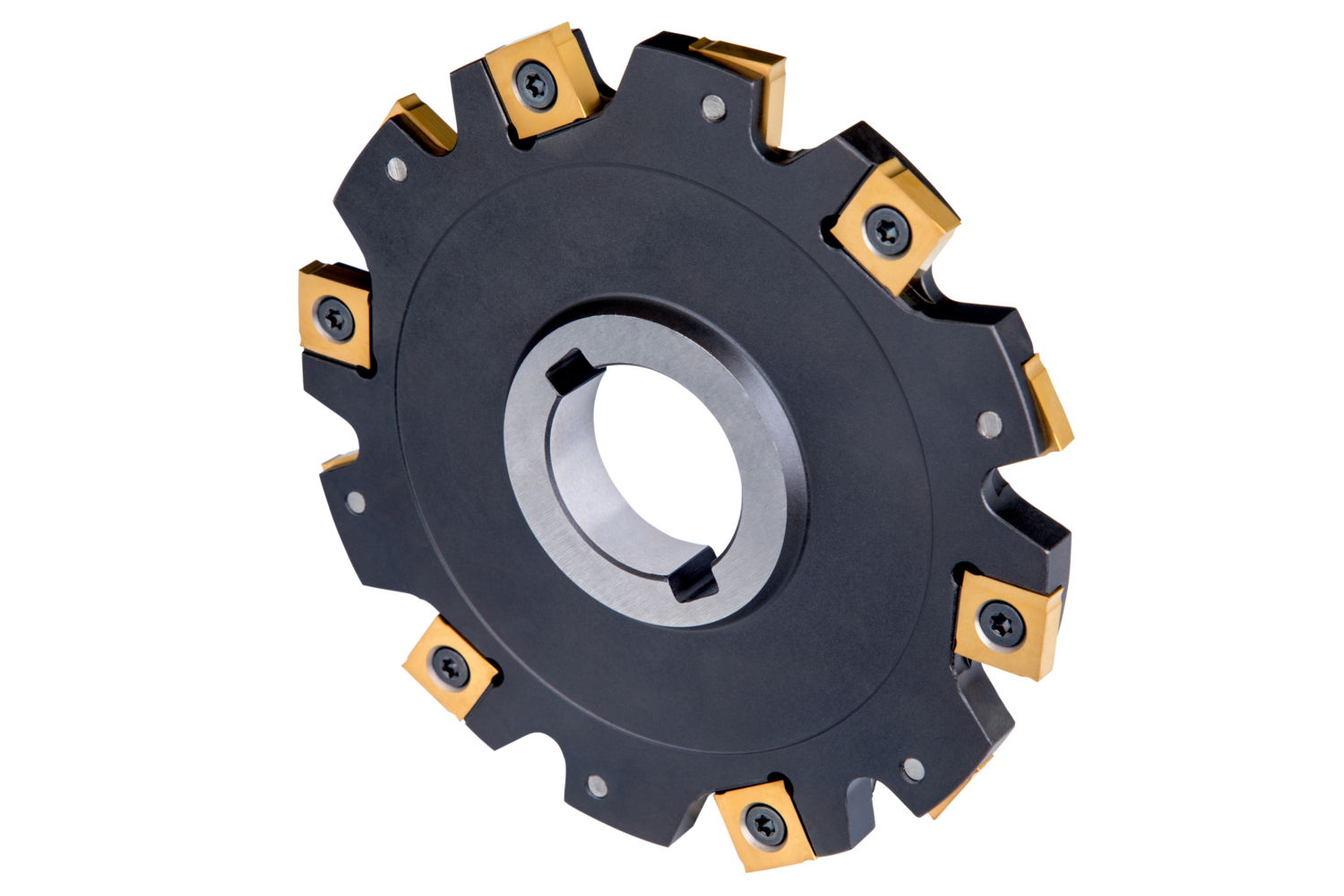

Disc mill with double positive geometry which utilises 16 off SNHQ 1102.. double-sided inserts, cutting diameter 6.000'' with 90 Degree approach angle and 1.250'' connection bore according to DIN 8030, for deep slot milling with a width of cut of .250''.
Product Specifications
| EDP Number | 6789682 |
| Peripheral Effective Cutting Edge Count | 16 |
| Cutting Width (inch) | 0.25" |
| Max Cutting Depth (Inch) | 1.693" |
| Axial Rake Angle | 0.5 |
| Radial Rake Angle | 2.5 |
| Max Rotational Speed | 5900 |
| Connection Bore Diameter (Inch) | 1.25" |
| Counterbore Diameter Connection Bore (Inch) | 2" |
| Cutting Diameter (mm) | 152.4 mm |
| Cutting Diameter (Inch) | 6" |
| Number of Peripheral Edges in The Tool | 16 |
| Country of origin | Czech Republic |
