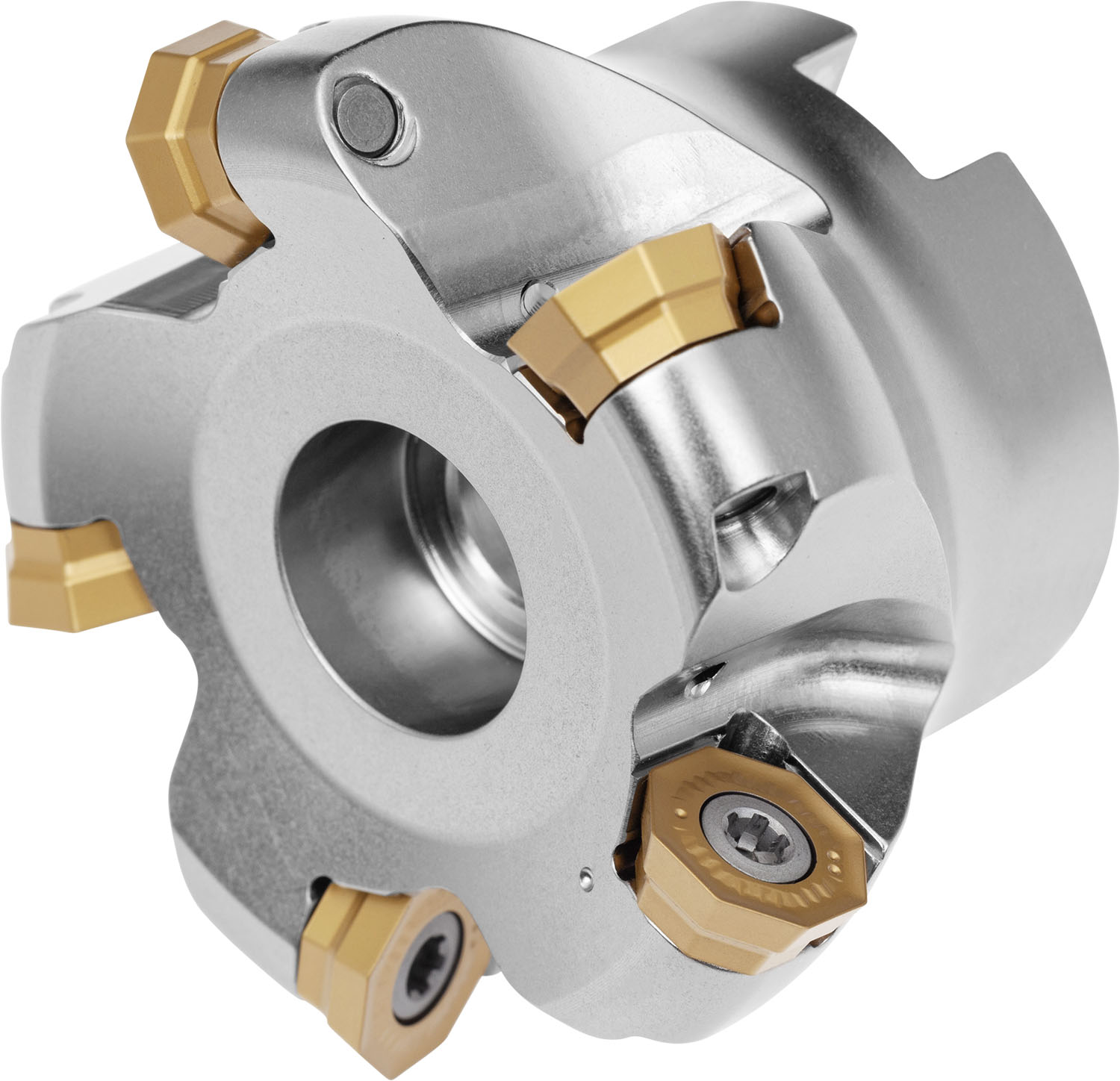

Copy face mill with positve/negative geometry which utilises 6 off OD.T 05IM, RD.T 12IM or SD.T 12IM single-sided inserts, cutting diameter 55.6 mm with 45 / 90 Degree approach angle and 22 mm connection bore according to DIN 8030-A, 40 mm protrusion length, through coolant and differential pitch for face milling, copy milling, shallow shoulder milling, shallow slot milling, ramping, helical milling, plunge milling, progressive plunge milling and chamfering with a maximum depth of cut of 3.0 (6.0/10.0) mm.
Product Specifications
| EDP Number | 7342884 |
| Peripheral Effective Cutting Edge Count | 6 |
| Cutting Pitch Differential | 1 |
| Insert Index Count | 6 |
| Coolant Supply Property | 1 |
| Tool Cutting Edge Angle | 45 |
| Axial Rake Angle | 8 |
| Radial Rake Angle | -7 |
| Max Rotational Speed | 12600 |
| Connection Diameter (mm) | 22 mm |
| Connection Diameter (Inch) | 0.866" |
| Counterbore Diameter Connection Bore (mm) | 18 mm |
| Keyway Width (mm) | 10.4 mm |
| Keyway Depth (mm) | 6.3 mm |
| Cutting Diameter (mm) | 55.6 mm |
| Max Cutting Diameter (mm) | 63 mm |
| Cutting Diameter (Inch) | 2.189" |
| Functional Length (mm) | 40 mm |
| Country of origin | Czech Republic |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Pramet
