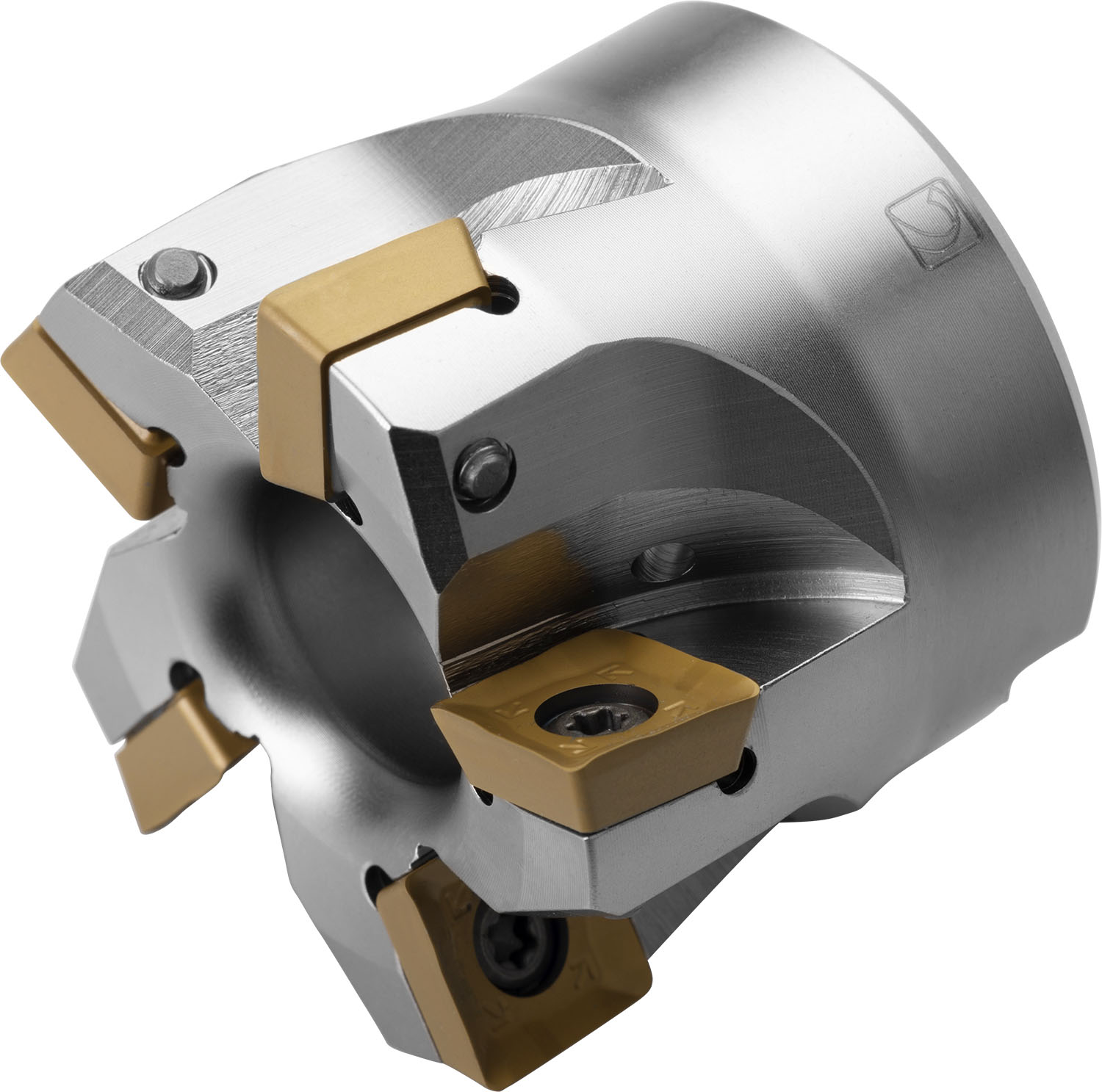

Shoulder mill with positve/negative geometry which utilises 6 off SDMT 1205.. single-sided inserts, cutting diameter 63 mm with 90 Degree approach angle and 22 mm connection bore according to DIN 8030-A, 40 mm protrusion length, through coolant for shallow shoulder milling, shallow slot milling and plunge milling with a maximum depth of cut of 10.0 mm.
Product Specifications
| EDP Number | 6756790 |
| Peripheral Effective Cutting Edge Count | 6 |
| Insert Index Count | 6 |
| Coolant Supply Property | 1 |
| Axial Rake Angle | 8 |
| Radial Rake Angle | -5 |
| Max Rotational Speed | 11600 |
| Connection Diameter (mm) | 22 mm |
| Connection Diameter (Inch) | 0.866" |
| Counterbore Diameter Connection Bore (mm) | 18 mm |
| Keyway Width (mm) | 10.4 mm |
| Keyway Depth (mm) | 6.3 mm |
| Cutting Diameter (mm) | 63 mm |
| Cutting Diameter (Inch) | 2.48" |
| Functional Length (mm) | 40 mm |
| Country of origin | Czech Republic |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Pramet
interval quantity:
1
