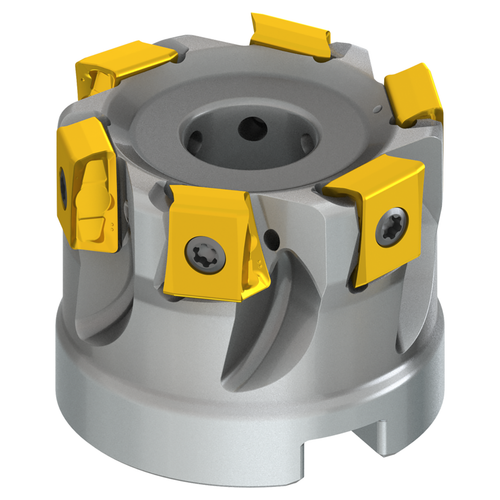

Shoulder mill with double negative geometry which utilises 6 of LNEX 1210.. double-sided inserts, cutting diameter 66mm with 90 degree approach angle and 22mm connection bore according to DIN 8030-A, 40mm functional and, through coolant and differential pitch for face milling, shallow shoulder milling, deep shoulder milling, plunge milling and shallow slot milling with a maximum depth of cut of 10mm.
Product Specifications
| Manufacturer Part Number | 66A06R-S90LN12X-C |
| Cutting Diameter (mm) | 66.00mm |
| Connection Diameter (mm) | 22.00mm |
| Tool Cutting Edge Angle (Degree) | 90 Degree |
| Functional Length (mm) | 40.00mm |
| Counterbore Diameter Connection Bore (mm) | 16.50mm |
| Peripheral Effective Cutting Edge Count | 6 |
| Product Type | Square Shoulder Mill |
| Country of Origin | Czech Republic |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Related Products
Brand:
Pramet
Cutting Diameter (Inch):
2-19/32"
Cutting Diameter (Decimal Inch):
2.5984"
Cutting Diameter (mm):
66.00mm
