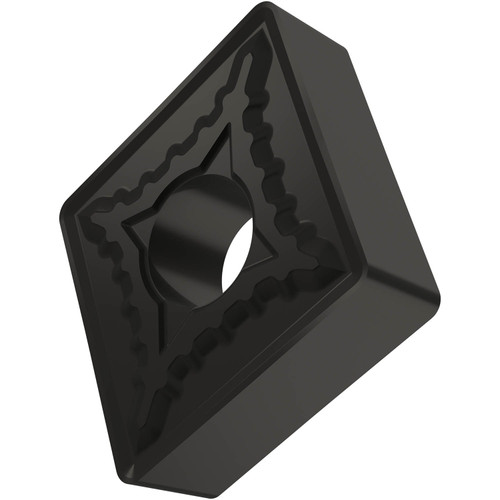

Double-sided negative turning insert, 80° rhomboid with inscribed circle diameter of 12.7 mm, 4.76 mm thick, 1.2 mm nose radius, indexing accuracy according to ISO-tolerance class-M, chip-breaker SM with rounded cutting edges, in grade T7335, a MT-CVD coated functionally graded WC-Co carbide within ISO ranges M20-M40 and S15-S25, for fine to heavy machining of stainless-steels and super-alloys.
Product Specifications
| EDP Number | 6915802 |
| Max Depth of Cut (mm) | 4.5 mm |
| Max Depth of cut (Inch) | 0.177" |
| Coating Property | 1 |
| Maximum Axial Groove Outside Diameter (mm) | |
| Fixing Hole Diameter (mm) | 5.16 mm |
| Fixing Hole Diameter (Inch) | 0.203" |
| Cutting Edge Length (mm) | 12.9 mm |
| Cutting Edge Length (Inch) | 0.508" |
| Inscribed Circle Diameter (mm) | 12.7 mm |
| Inscribed Circle Diameter (Inch) | 0.5" |
| Insert Thickness (mm) | 4.76 mm |
| Insert Thickness (Inch) | 0.187" |
| Corner Radius (mm) | 1.2 mm |
| Corner Radius (Inch) | 0.047" |
| Coating Process | MT-CVD |
| Coating | T7335 |
| Surface Color | Black |
| Min Depth of Cut (mm) | 1.2 mm |
| Min Depth of Cut (Inch) | 0.047" |
| Chipbreaker Manufacturer's Designation | SM |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Ships:
From Partner Facility
Brand:
Pramet
Length (Inch):
33/64"
Length (Decimal Inch):
0.5080"
Length (mm):
12.9mm
Inscribed Circle (Inch):
1/2"
Inscribed Circle (Decimal Inch):
0.5000"
Inscribed Circle (mm):
12.7mm
Thickness (Inch):
3/16"
Thickness (Decimal Inch):
0.1870"
Thickness (mm):
4.76mm
Corner Radius (Inch):
3/64"
Corner Radius (Decimal Inch):
0.0470"
Corner Radius (mm):
1.2mm
interval quantity:
10
