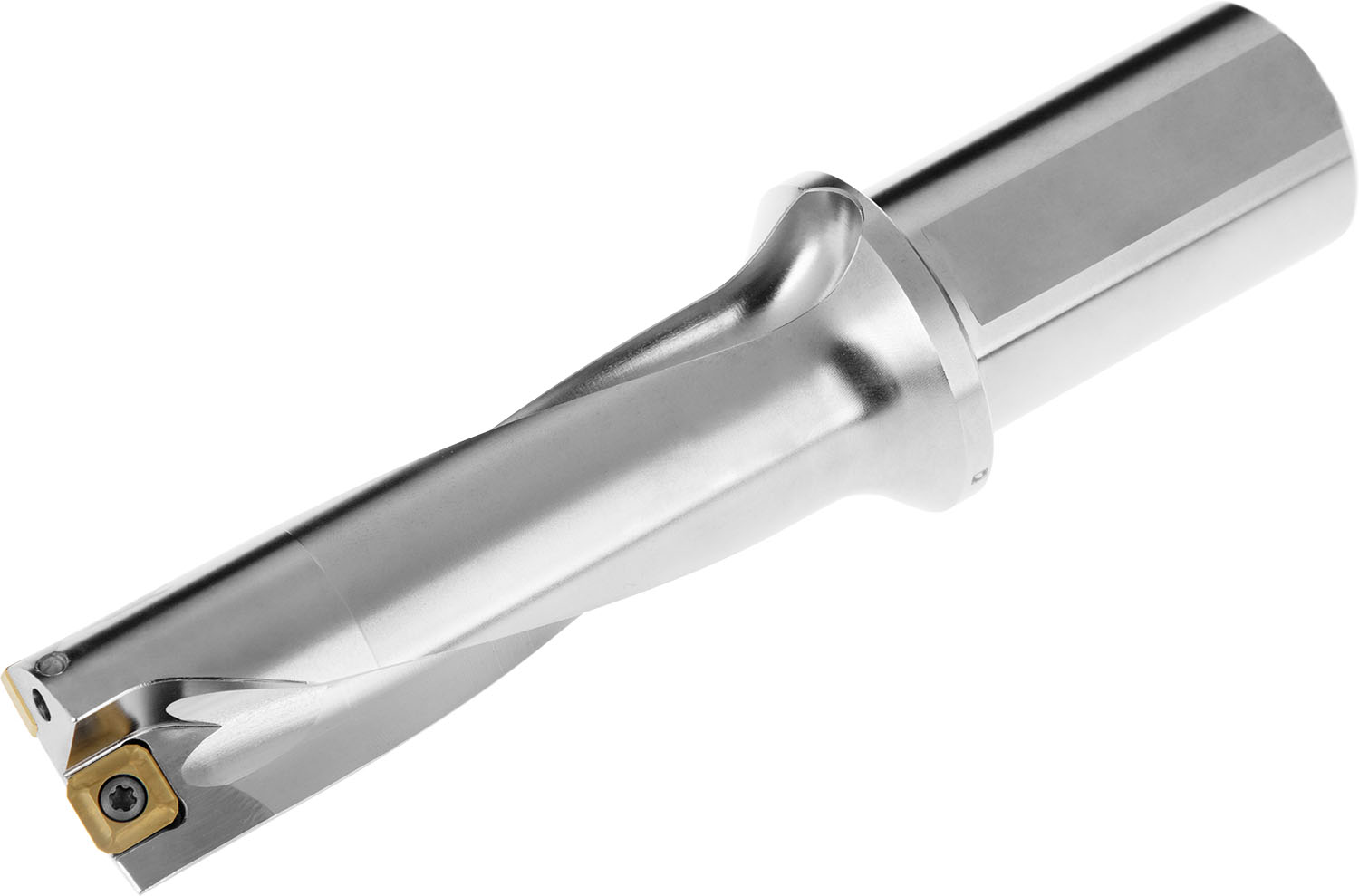

Indexable insert drill which utilises an XPET 11T3.. insert in the central pocket and a SCET 1204.. insert in the peripheral pocket, cutting diameter 1.500'', with a 1.500'' cylindrical shank with flat according to ISO 9766 and through coolant for maximum drilling depths up to 3 x D.
Product Specifications
| EDP Number | 6801147 |
| Max Depth of cut (Inch) | 4.5" |
| Min Adjustment Limit (Inch) | 0.006" |
| 0.02" |
| Connection Diameter (mm) | 38.1 mm |
| Connection Diameter (Inch) | 1.5" |
| Connection Diameter Tolerance Machine Side | h6 |
| Cutting Diameter (mm) | 38.1 mm |
| Cutting Diameter (Inch) | 1.5" |
| Overall Length (mm) | 206 mm |
| Overall Length (Inch) | 8.122" |
| Usable Length (Inch) | 4.756" |
| Protruding Length (Inch) | 5.484" |
| Shank Length (Inch) | 2.638" |
| Country of origin | Czech Republic |
