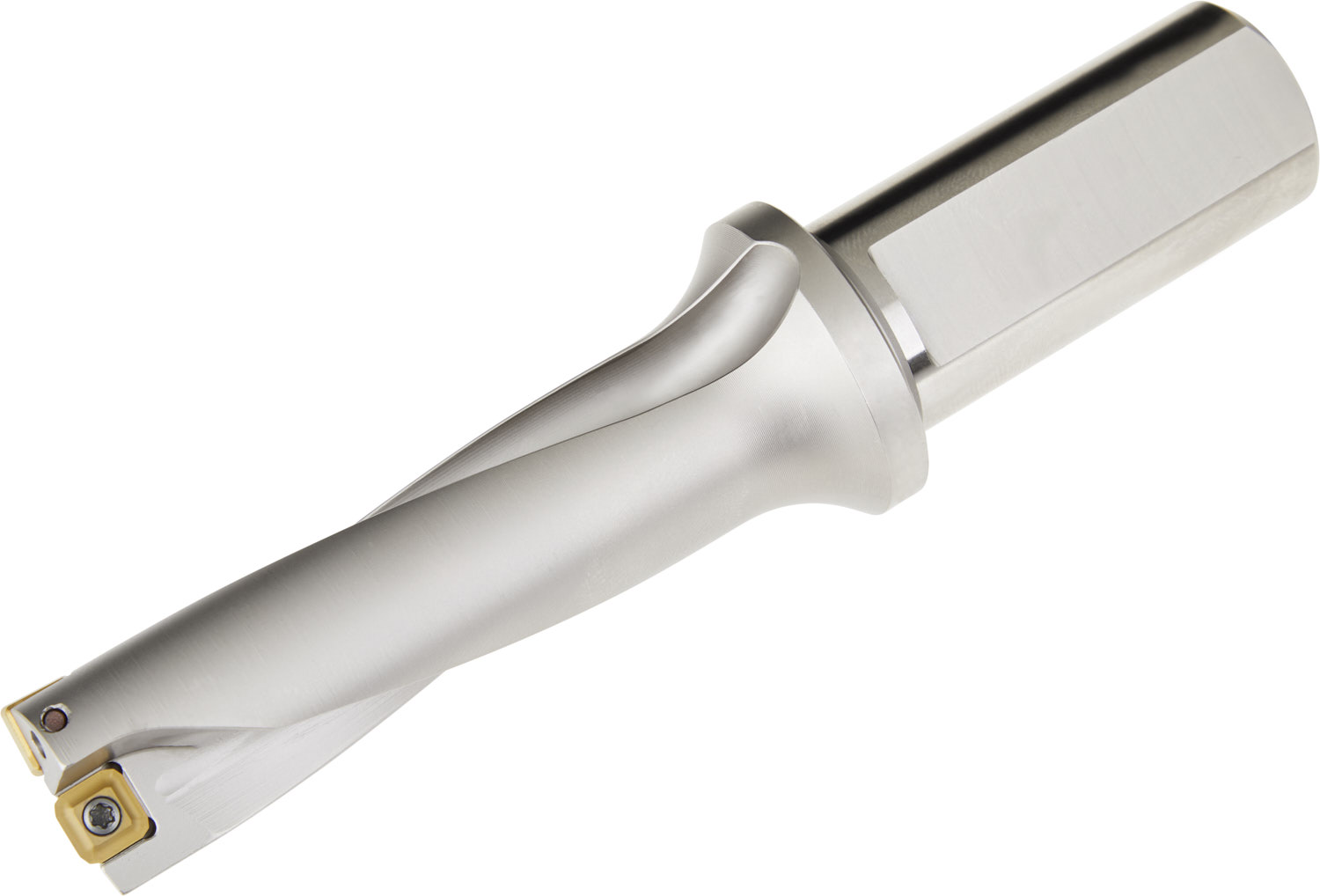

Indexable insert drill which utilises an XPET 0703.. insert in the central pocket and a SCET 0703.. insert in the peripheral pocket, cutting diameter 23mm in combination with EP253253, suited for a radial adjustment of -0.35 to +0.50mm, with a 25mm cylindrical shank with flat according to ISO 9766 and through coolant for maximum drilling depths up to 3 x D.
Product Specifications
| EDP Number | 6820807 |
| Max Depth of Cut (mm) | 69 mm |
| Coolant Supply Property | 1 |
| Min Adjustment Limit (mm) | 0.35 mm |
| Max Adjustment Limit (mm) | 0.5 mm |
| Connection Diameter (mm) | 25 mm |
| Connection Diameter (Inch) | 0.984" |
| Connection Diameter Tolerance Machine Side | h6 |
| Cutting Diameter (mm) | 23 mm |
| Cutting Diameter (Inch) | 0.906" |
| Overall Length (mm) | 160 mm |
| Overall Length (Inch) | 6.299" |
| Usable Length (mm) | 77.5 mm |
| Protruding Length (mm) | 104 mm |
| Shank Length (mm) | 56 mm |
| Cutting Edge Count | 1 |
