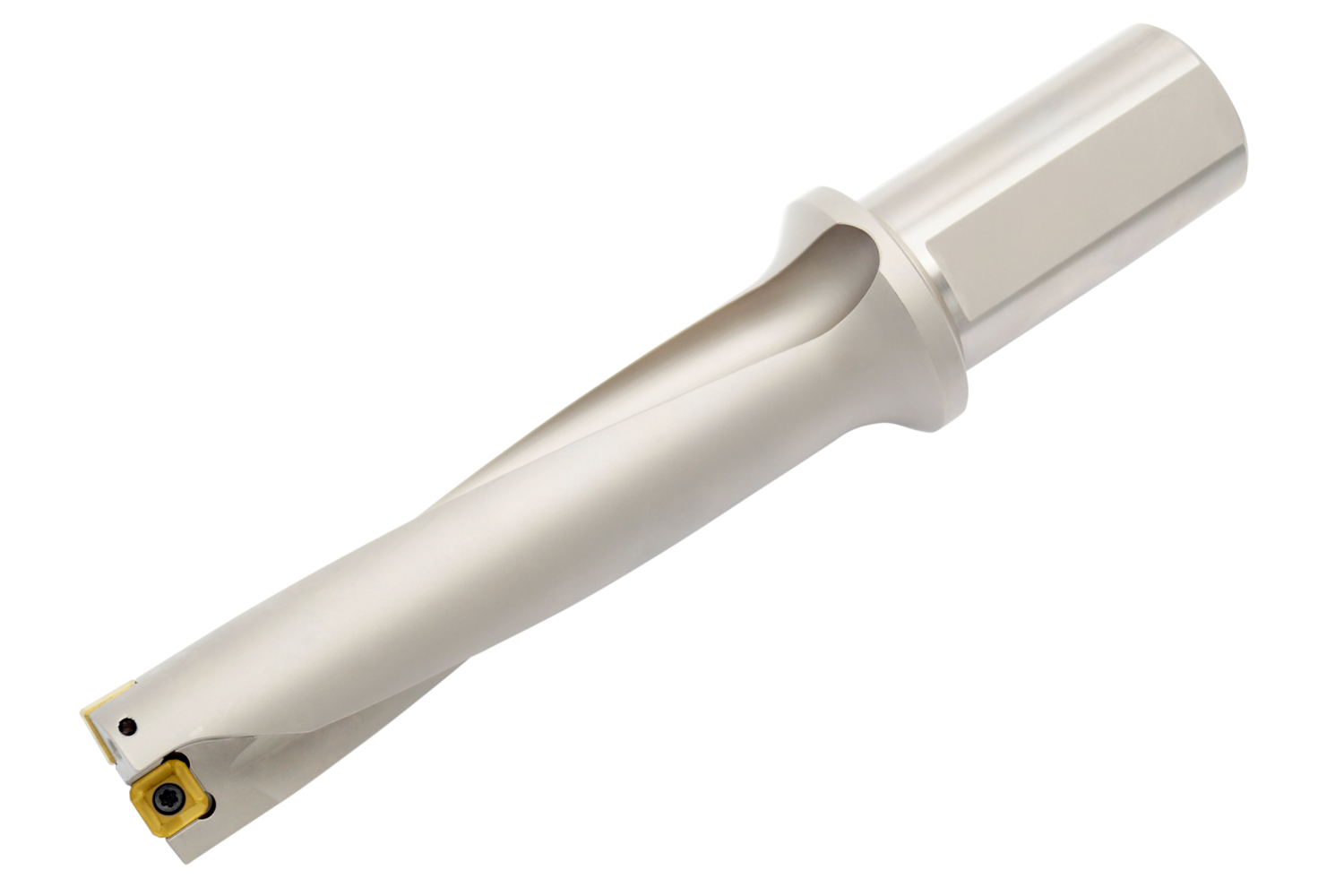

Indexable insert drill which utilises an XPET 0903.. insert in the central pocket and a SCET 0703.. insert in the peripheral pocket, cutting diameter 1.062'', with a 1.250'' cylindrical shank with flat according to ISO 9766 and through coolant for maximum drilling depths up to 4 x D.
Product Specifications
| EDP Number | 6801167 |
| Max Depth of cut (Inch) | 4.248" |
| Min Adjustment Limit (Inch) | 0.02" |
| 0.008" | |
| Connection Diameter (mm) | 31.8 mm |
| Connection Diameter (Inch) | 1.25" |
| Connection Diameter Tolerance Machine Side | h6 |
| Cutting Diameter (mm) | 27 mm |
| Cutting Diameter (Inch) | 1.062" |
| Overall Length (mm) | 193 mm |
| Overall Length (Inch) | 7.594" |
| Usable Length (Inch) | 4.248" |
| Protruding Length (Inch) | 5.232" |
| Shank Length (Inch) | 2.362" |
| Country of origin | Czech Republic |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Pramet
