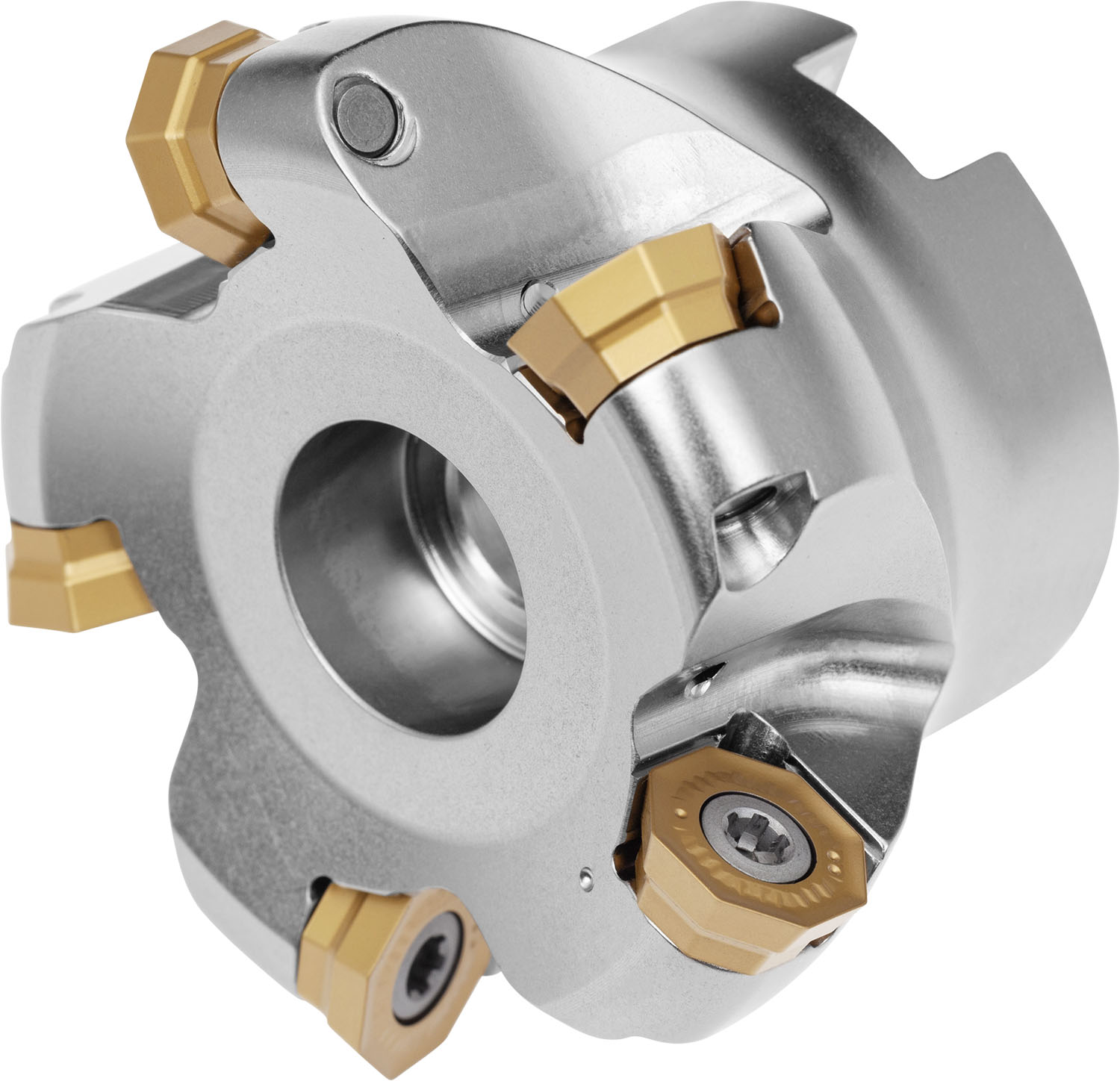

Copy face mill with positve/negative geometry which utilises 6 off OD.T 05IM, RD.T 12IM or SD.T 12IM single-sided inserts, cutting diameter 72.6 mm with 45 / 90° approach angle and 27 mm connection bore according to DIN 8030-A, 50 mm protrusion length, through coolant and differential pitch for face milling, copy milling, shallow shoulder milling, shallow slot milling, ramping, helical milling, plunge milling, progressive plunge milling and chamfering with a maximum depth of cut of 3.0 (6.0/10.0) mm.
Product Specifications
| EDP Number | 7342885 |
| Peripheral Effective Cutting Edge Count | 6 |
| Cutting Pitch Differential | 1 |
| Insert Index Count | 6 |
| Coolant Supply Property | 1 |
| Tool Cutting Edge Angle | 45 |
| Axial Rake Angle | 8 |
| Radial Rake Angle | -7 |
| Max Rotational Speed | 11100 |
| Connection Diameter (mm) | 27 mm |
| Connection Diameter (Inch) | 1.063" |
| Counterbore Diameter Connection Bore (mm) | 38 mm |
| Keyway Width (mm) | 12.4 mm |
| Keyway Depth (mm) | 7 mm |
| Cutting Diameter (mm) | 72.6 mm |
| Max Cutting Diameter (mm) | 80 mm |
| Cutting Diameter (Inch) | 2.858" |
| Functional Length (mm) | 50 mm |
