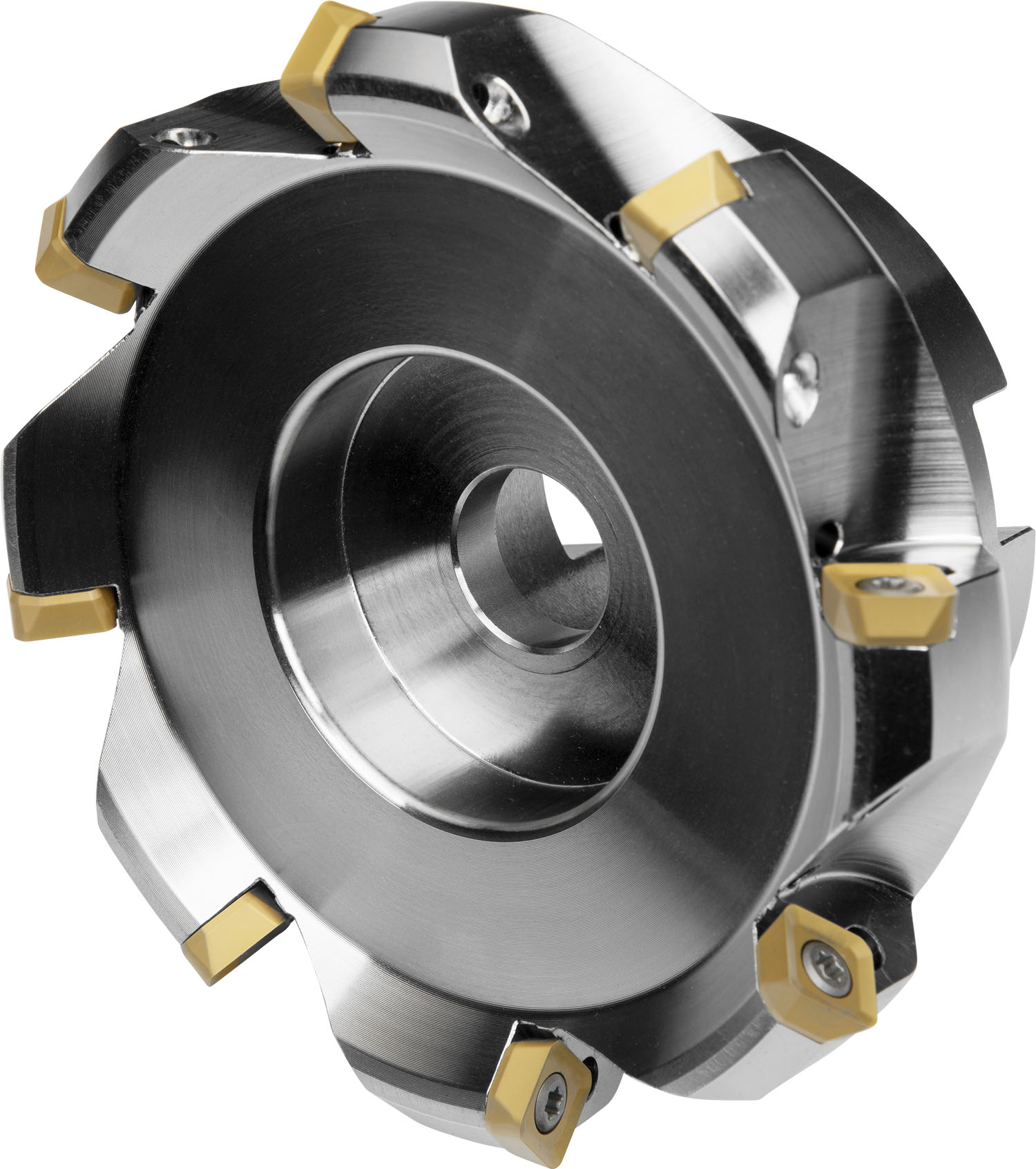

Face mill with positve/negative geometry which utilises 6 off SNKT 1205AZ.. or SNMT 1205AZ.. double-sided inserts, cutting diameter 80 to maximum 95 mm with 45° approach angle and 27 mm connection bore according to DIN 8030-A, 50 mm protrusion length, through coolant for face milling and chamfering with a maximum depth of cut of 6.5 mm.
Product Specifications
| EDP Number | 6758341 |
| Peripheral Effective Cutting Edge Count | 6 |
| Insert Index Count | 6 |
| Coolant Supply Property | 1 |
| Axial Rake Angle | 7.5 |
| Radial Rake Angle | -5.5 |
| Max Rotational Speed | 7700 |
| Connection Diameter (mm) | 27 mm |
| Connection Diameter (Inch) | 1.063" |
| Counterbore Diameter Connection Bore (mm) | 38 mm |
| Keyway Width (mm) | 12.4 mm |
| Keyway Depth (mm) | 7 mm |
| Cutting Diameter (mm) | 80 mm |
| Max Cutting Diameter (mm) | 95 mm |
| Cutting Diameter (Inch) | 3.15" |
| Functional Length (mm) | 50 mm |
