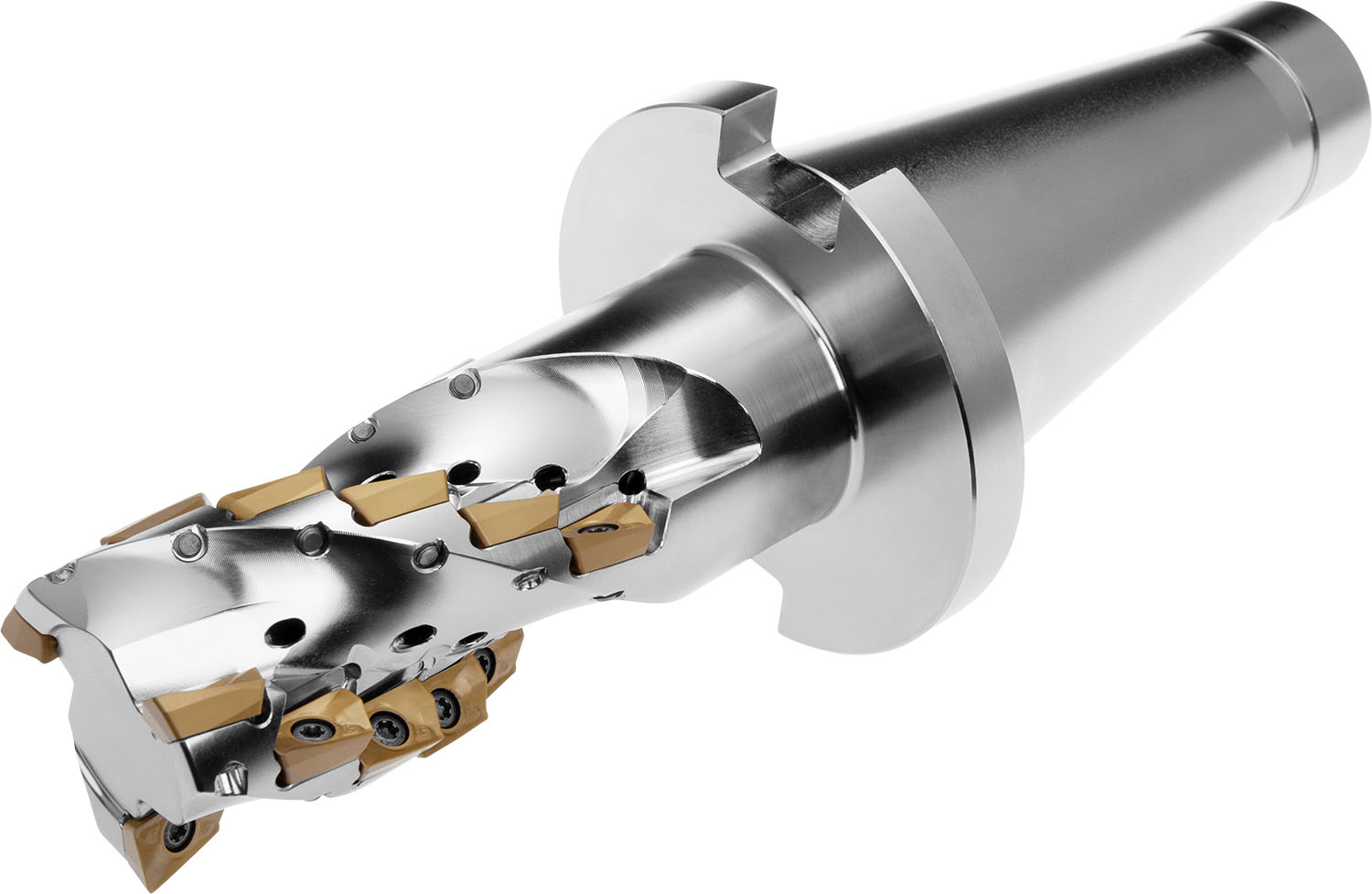

Shoulder mill with extended flute with positve/negative geometry which utilises 32 off ADMX 16 or ADEX 16 single-sided inserts, cutting diameter 80 mm with 90 Degree approach angle and SK 50 taper shank according to ISO 297, 108 mm functional and 292 mm overall length, through coolant and differential pitch for deep shoulder milling and deep slot milling with a maximum depth of cut of 108 mm.
Product Specifications
| EDP Number | 6922418 |
| Peripheral Effective Cutting Edge Count | 32 |
| Cutting Pitch Differential | 1 |
| Insert Index Count | 32 |
| Maximum Depth of Cut (mm) | 108 mm |
| Flute Count | 4 |
| Coolant Supply Property | 1 |
| Axial Rake Angle | 12 |
| Radial Rake Angle | -6 |
| Max Rotational Speed | 10400 |
| Connection Size Code Machine Side | 50 |
| Cutting Diameter (mm) | 80 mm |
| Cutting Diameter (Inch) | 3.15" |
| Overall Length (mm) | |
| Overall Length (Inch) | |
| Functional Length (mm) | 165 mm |
| Country of origin | Czech Republic |
