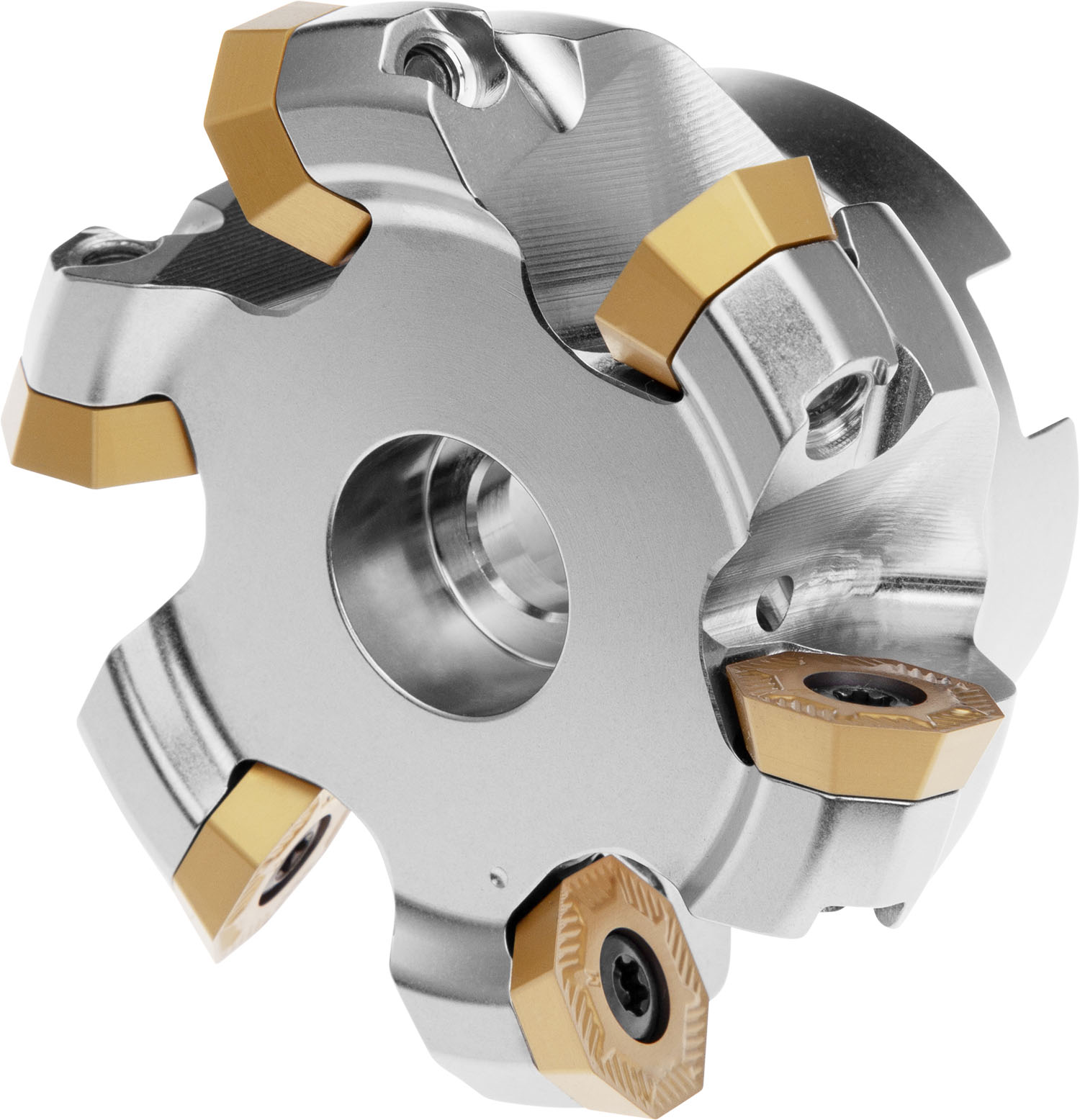

Pramet 90A07R-S45OE06Z-C | 90 mm Diameter x 50 mm Functional Length Indexable Copy Face Mill

$701.60
Ships:
From Partner Facility
Ships:
From Partner Facility
interval quantity:
1
SKU:
23145428
Weight:
57.64 LBS
Minimum Purchase:
1 unit
Shipping:
Free Shipping
Face mill with double positive geometry which utilises 7 off OEHT 0604AE.., REHT 1604M0.. or XEHT 0604AE.. single-sided inserts, cutting diameter 90 to maximum 100 mm with 43° approach angle and 32 mm connection bore according to DIN 8030-A, 50 mm protrusion length, through coolant and differential pitch for face milling and chamfering with a maximum depth of cut of 3.3 (9.9) mm.

Product Specifications
EDP Number6922510
Peripheral Effective Cutting Edge Count7
Cutting Pitch Differential1
Insert Index Count7
Coolant Supply Property1
Axial Rake Angle10
Radial Rake Angle6
Max Rotational Speed8000
Connection Diameter (mm)32 mm
Connection Diameter (Inch)1.26"
Counterbore Diameter Connection Bore (mm)45 mm
Keyway Width (mm)14.4 mm
Keyway Depth (mm)8 mm
Cutting Diameter (mm)90 mm
Max Cutting Diameter (mm)100 mm
Cutting Diameter (Inch)3.543"
Functional Length (mm)50 mm
