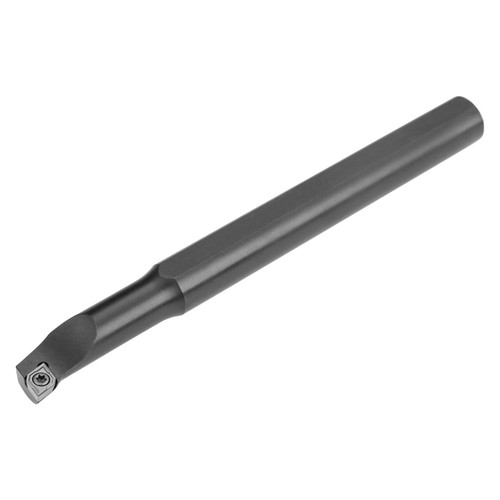

Screw clamp boring bar for holding a 75 Degree rhombus positive insert with an inscribed circle diameter of 5.56 mm, 2.38 mm thick (ISO designation EP.. 0502.. ), right hand 95 Degree side and end cutting with off-set shank, steel with coolant hole, 12 mm diameter x 150 mm long for taper boring and longitudinal boring with and without shoulder.
Product Specifications
| EDP Number | 6760745 |
| Functional Width (mm) | |
| Coolant Supply Property | 1 |
| Inclination Angle | -2 |
| Maximum Axial Groove Outside Diameter (mm) | |
| Connection Diameter (mm) | 16 mm |
| Connection Diameter (Inch) | 0.63" |
| Minimum Bore Diameter (mm) | |
| Body Diameter (mm) | 12 mm |
| Body Diameter (Inch) | 0.472" |
| Functional Length (mm) | 150 mm |
| Head Length (mm) | 40 mm |
| Direction of Tool | Right |
| Country of origin | Czech Republic |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Ships:
From Partner Facility
Brand:
Pramet
interval quantity:
1
