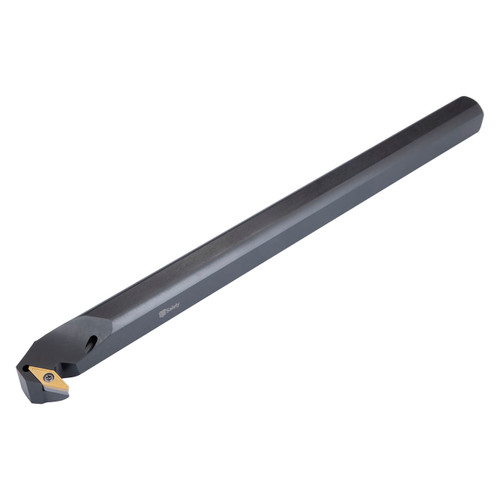

Screw clamp boring bar for holding a 35° rhombus positive insert with an inscribed circle diameter of 7.94 mm, 3.18 mm thick (ISO designation VC.. 1303.. ), left hand 107°30' end cutting with off-set shank, steel with coolant hole, 20 mm diameter x 250 mm long for single and multi-directional copy boring.
Product Specifications
| EDP Number | 6760901 |
| Functional Width (mm) | |
| Coolant Supply Property | 1 |
| Inclination Angle | -4 |
| Maximum Axial Groove Outside Diameter (mm) | |
| Connection Diameter (mm) | 20 mm |
| Connection Diameter (Inch) | 0.787" |
| Shank Height (mm) | 18 mm |
| Shank Width (mm) | 18.5 mm |
| Minimum Bore Diameter (mm) | |
| Functional Length (mm) | 250 mm |
| Direction of Tool | Left |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Ships:
From Partner Facility
Brand:
Pramet
Shank Width (Inch):
47/64"
Shank Width (Decimal Inch):
0.7300"
Shank Width (mm):
18.5mm
Shank Height (Inch):
45/64"
Shank Height (Decimal Inch):
0.7100"
Shank Height (mm):
18mm
