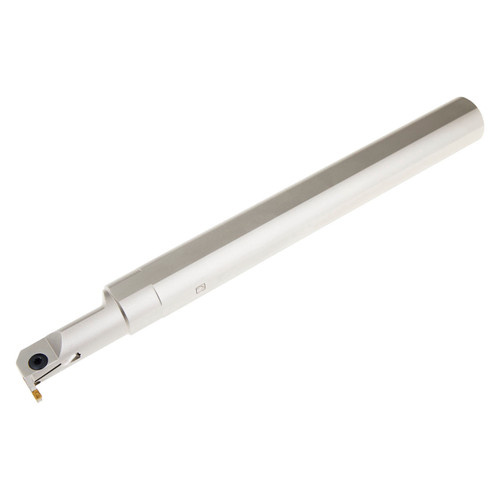

Top clamp grooving bar for holding a 12.6 mm long double or single ended insert with 3 mm cutting width (designation LCM. 0313.. ), right handed with insert perpendicular to the shank for a maximum grooving depth of 6.5 mm, shank diameter 25 mm and tool length 250 mm for internal grooving and turning.
Product Specifications
| EDP Number | 6758157 |
| Functional Height (mm) | 11.5 mm |
| Cutting Width (mm) | 3 mm |
| Max Cutting Depth (mm) | 6.5 mm |
| Coolant Supply Property | 1 |
| Maximum Axial Groove Outside Diameter (mm) | |
| Connection Diameter (mm) | 25 mm |
| Connection Diameter (Inch) | 0.984" |
| Shank Height (mm) | 23 mm |
| Shank Width (mm) | 24 mm |
| Minimum Bore Diameter (mm) | |
| Functional Length (mm) | 250 mm |
| Head Length (mm) | 40 mm |
| Clamping Type Code | System G |
| Direction of Tool | Right |
| Country of origin | Czech Republic |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Related Products
Brand:
Pramet
