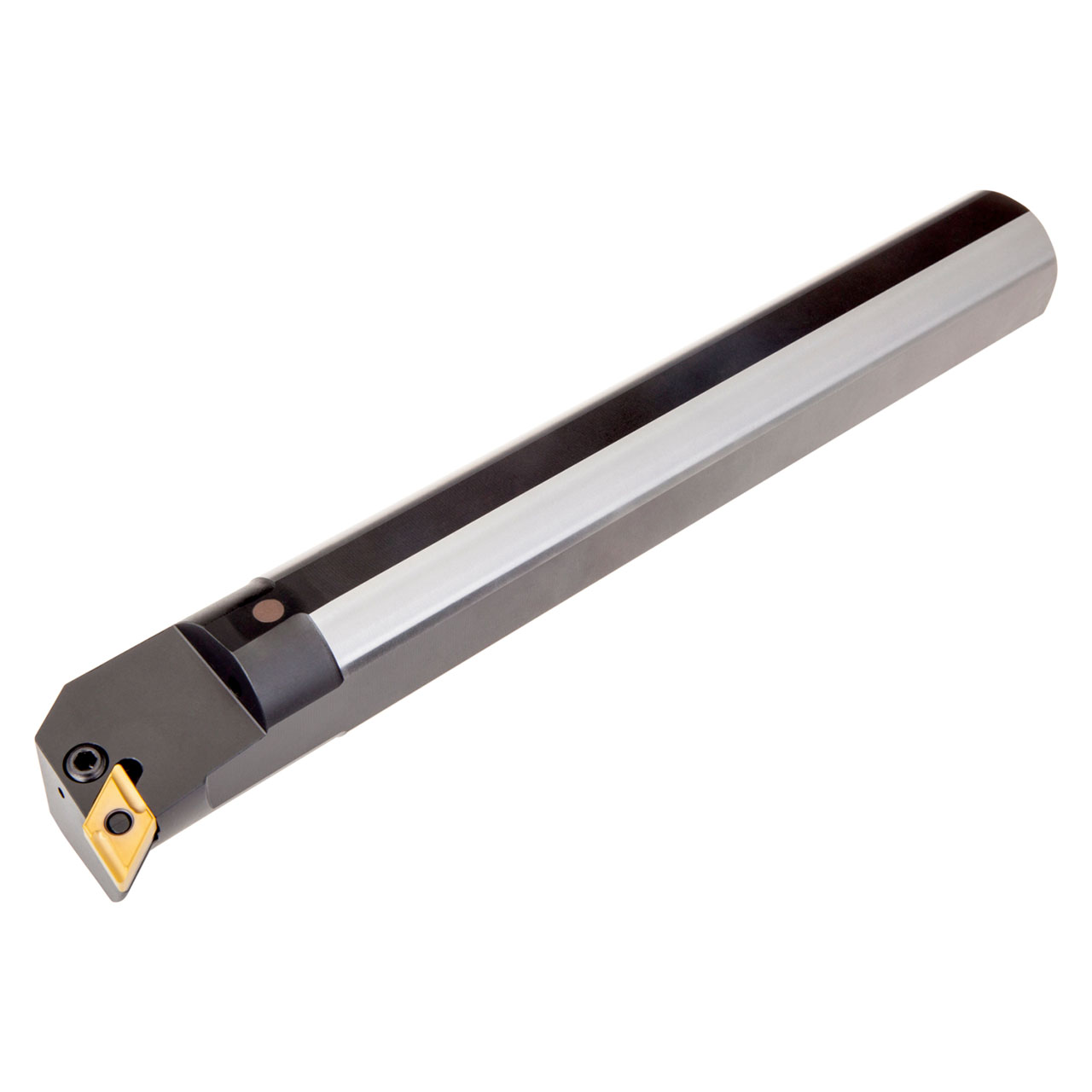

Lever lock boring bar for holding a 55° rhombus negative insert with an inscribed circle diameter of 12.7 mm, 4.76 mm thick (ISO designation DN.. 1504.. ), right hand 93° end cutting with off-set shank, steel with coolant hole, 32 mm diameter x 250 mm long for taper boring, single and multi-directional copy boring and longitudinal boring with and without shoulder.
Product Specifications
| EDP Number | 6757270 |
| Functional Width (mm) | |
| Coolant Supply Property | 1 |
| Orthogonal Rake Angle | -6 |
| Inclination Angle | -12 |
| Maximum Axial Groove Outside Diameter (mm) | |
| Connection Diameter (mm) | 32 mm |
| Connection Diameter (Inch) | 1.26" |
| Shank Height (mm) | 30 mm |
| Shank Width (mm) | 30 mm |
| Minimum Bore Diameter (mm) | |
| Functional Length (mm) | 250 mm |
| Direction of Tool | Right |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Ships:
From Partner Facility
Brand:
Pramet
Rake Angle:
-6
Shank Width (Inch):
1-3/16"
Shank Height (Inch):
1-3/16"
interval quantity:
1
