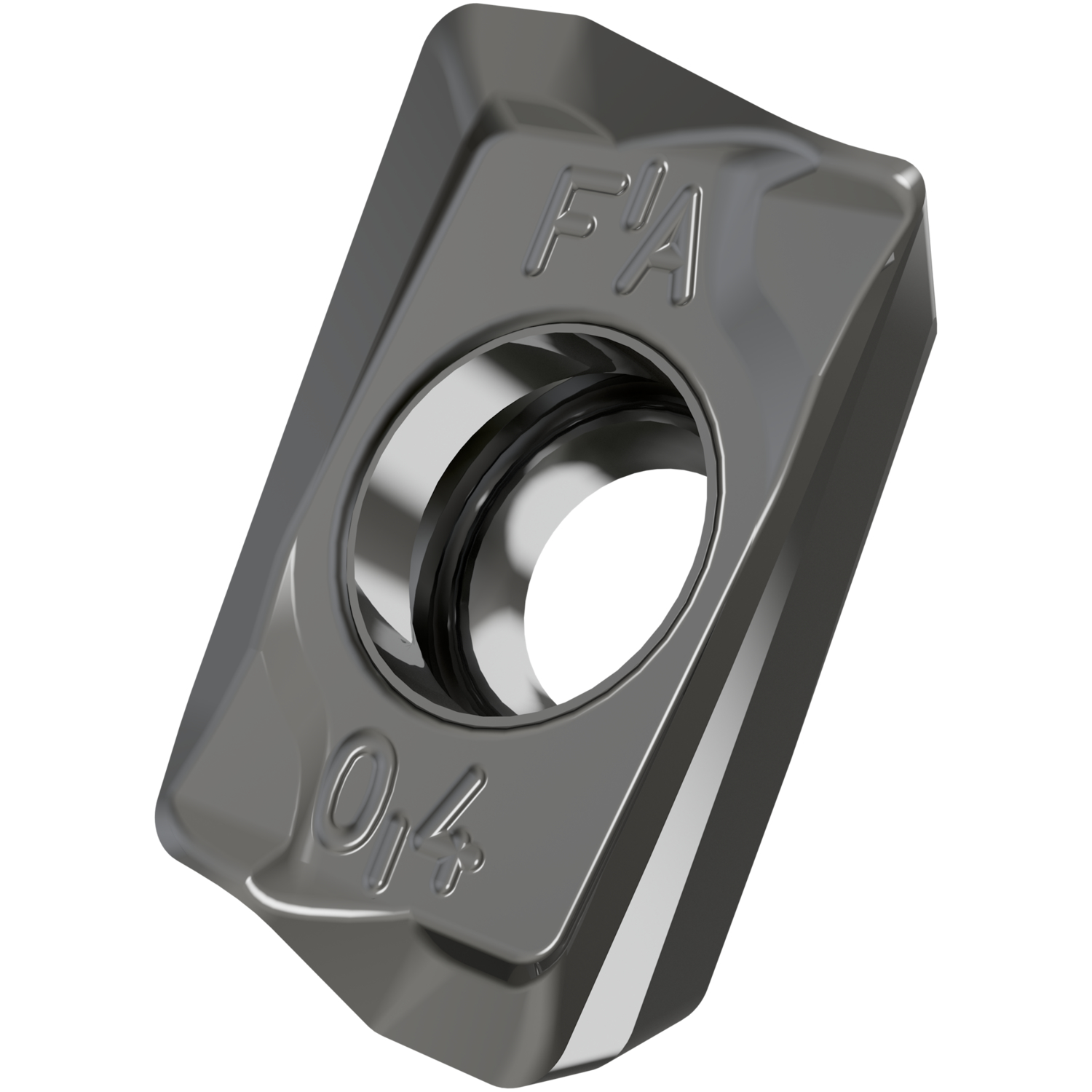

Single-sided milling insert ADEX 0702, 85° parallelogram for a maximum depth of cut of 5.0 mm, with 0.8 mm corner radius, an indexing accuracy according to ISO-tolerance class-E and FA geometry with sharp cutting edges, HF7 uncoated fine grained WC-Co carbide within ISO-grade range N10-N25 for machining of non-ferrous metal with shoulder mills SAD07D.
Product Specifications
| EDP Number | 7606836 |
| Maximum Depth of Cut (mm) | 5 mm |
| Max Depth of Cut (Inch) | 0.197" |
| Fixing Hole Diameter (mm) | 2.2 mm |
| Fixing Hole Diameter (Inch) | 0.087" |
| Cutting Edge Length (mm) | 6.95 mm |
| Cutting Edge Length (Inch) | 0.274" |
| Insert Width (mm) | 4.497 mm |
| Insert Width (Inch) | 0.177" |
| Insert Thickness (mm) | 2.48 mm |
| Insert Thickness (Inch) | 0.098" |
| Corner Radius (mm) | 0.8 mm |
| Corner Radius (Inch) | 0.031" |
| Coating | HF7 |
| Surface Color | Silver |
| Min Depth of Cut (mm) | 0.1 mm |
| Min Depth of Cut (Inch) | 0.004" |
