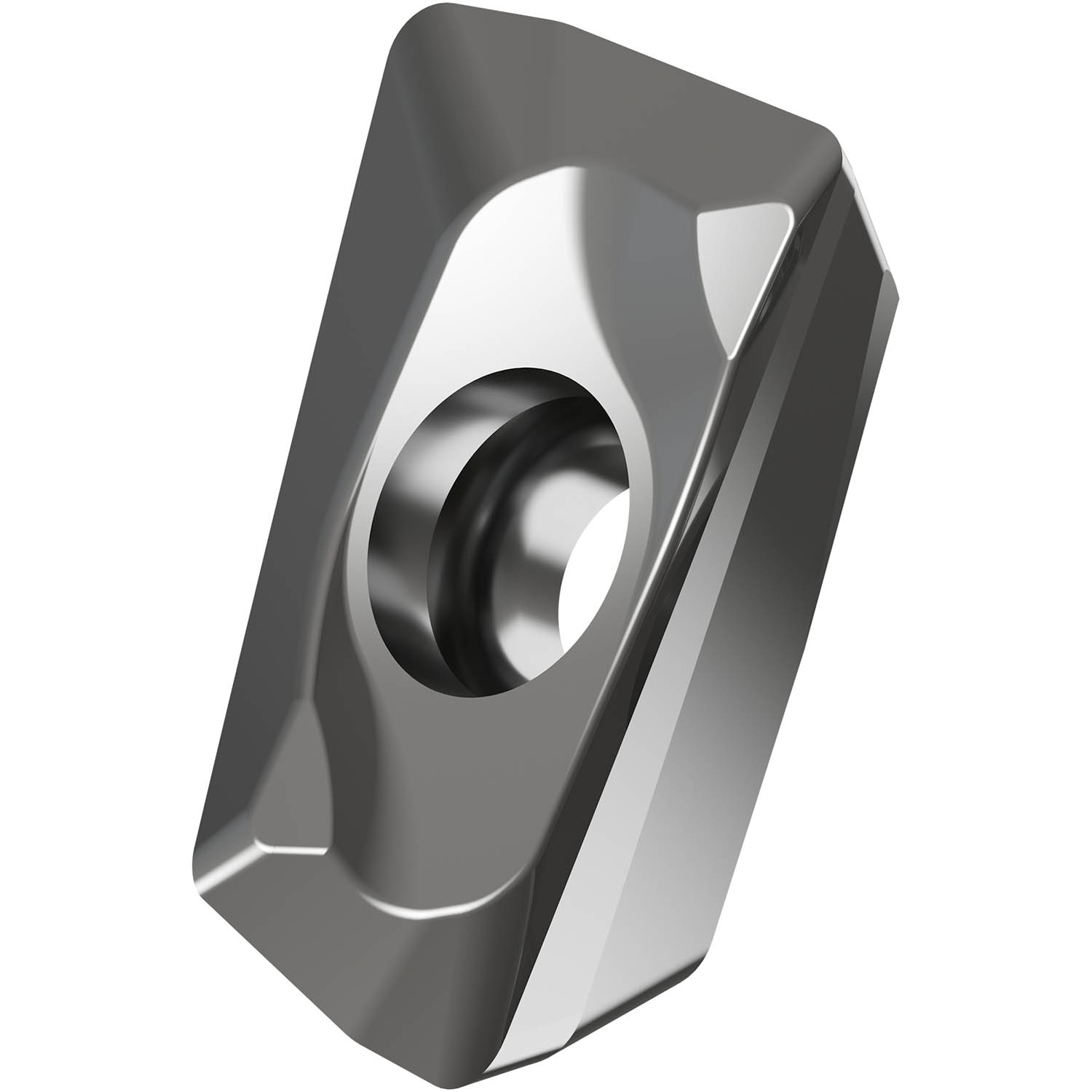

Single-sided milling insert ADEX 11T3, 85° parallelogram for a maximum depth of cut of 9.0 mm, with 1.2 mm corner radius, an indexing accuracy according to ISO-tolerance class-E and FA geometry with sharp cutting edges, HF7 uncoated fine grained WC-Co carbide within ISO-grade range N10-N25 for machining of non-ferrous metal with shoulder mills SAD11E or shoulder mills with extended flute J(T)-SAD11E.
Product Specifications
| EDP Number | 7155957 |
| Maximum Depth of Cut (mm) | 9 mm |
| Max Depth of Cut (Inch) | 0.354" |
| Fixing Hole Diameter (mm) | 2.9 mm |
| Fixing Hole Diameter (Inch) | 0.114" |
| Cutting Edge Length (mm) | 9.7 mm |
| Cutting Edge Length (Inch) | 0.382" |
| Insert Width (mm) | 6.45 mm |
| Insert Width (Inch) | 0.254" |
| Insert Thickness (mm) | 3.91 mm |
| Insert Thickness (Inch) | 0.154" |
| Corner Radius (mm) | 1.2 mm |
| Corner Radius (Inch) | 0.047" |
| Coating | HF7 |
| Surface Color | Silver |
| Min Depth of Cut (mm) | 0.2 mm |
| Min Depth of Cut (Inch) | 0.008" |
