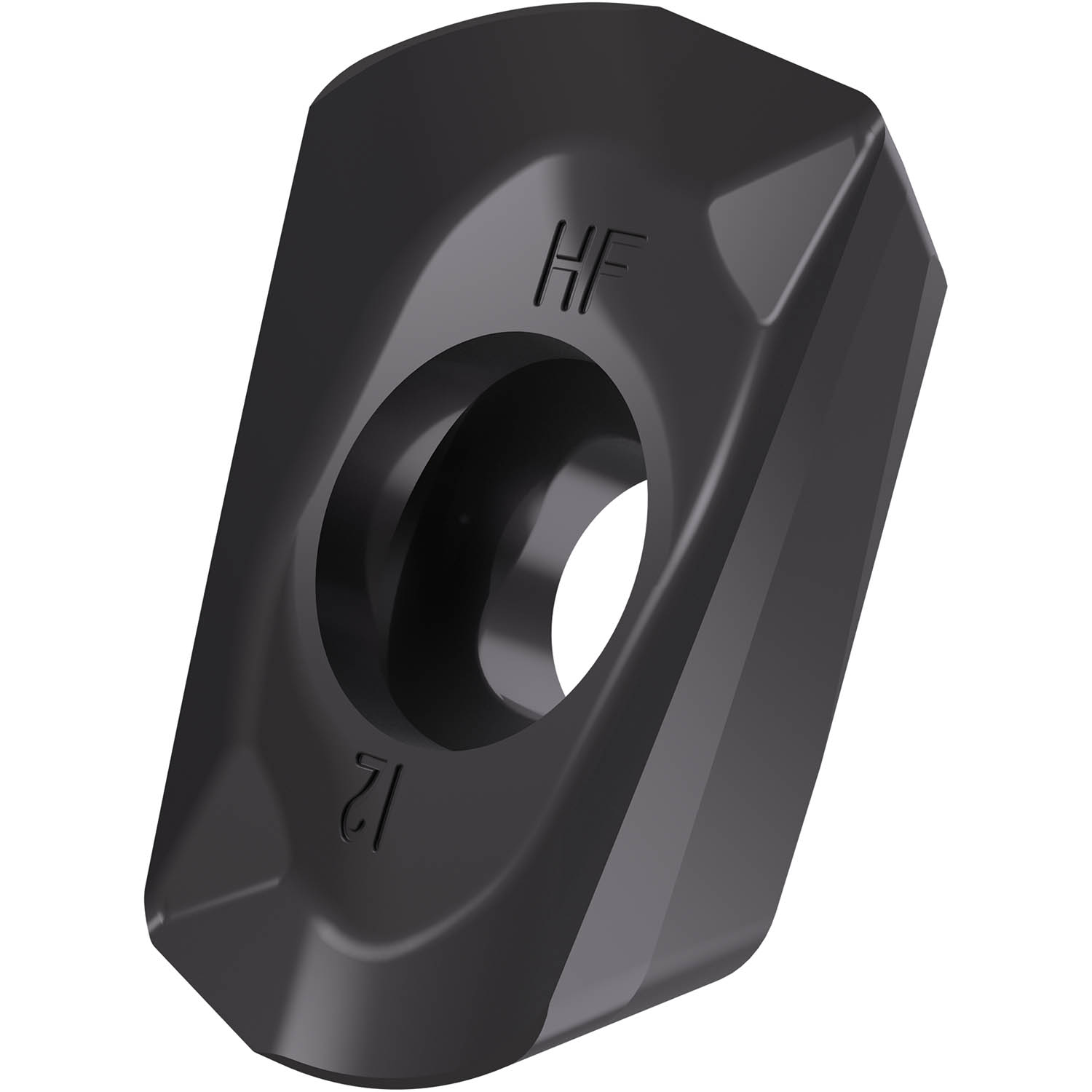

Single-sided milling insert ADEX 1606, 85° parallelogram and high-feed design for a maximum depth of cut of 1.3 mm, with 1.2 mm corner radius, an indexing accuracy according to ISO-tolerance class-E and HF geometry with rounded cutting edges and facet, 8215 PVD coated fine grained WC-Co carbide within ISO-grade range P10-P20 for machining of steel with shoulder mills SAD16E.
Product Specifications
| EDP Number | 6838414 |
| Maximum Depth of Cut (mm) | 1.3 mm |
| Max Depth of Cut (Inch) | 0.051" |
| Coating Property | 1 |
| Fixing Hole Diameter (mm) | 4.5 mm |
| Fixing Hole Diameter (Inch) | 0.177" |
| Cutting Edge Length (mm) | 16 mm |
| Cutting Edge Length (Inch) | 0.63" |
| Insert Width (mm) | 9.95 mm |
| Insert Width (Inch) | 0.392" |
| Insert Thickness (mm) | 5.88 mm |
| Insert Thickness (Inch) | 0.231" |
| Corner Radius (mm) | 1.2 mm |
| Corner Radius (Inch) | 0.047" |
| Coating Process | PVD |
| Coating | 8215 |
| Surface Color | Purple - Black |
| Min Depth of Cut (mm) | 0.3 mm |
| Min Depth of Cut (Inch) | 0.012" |
