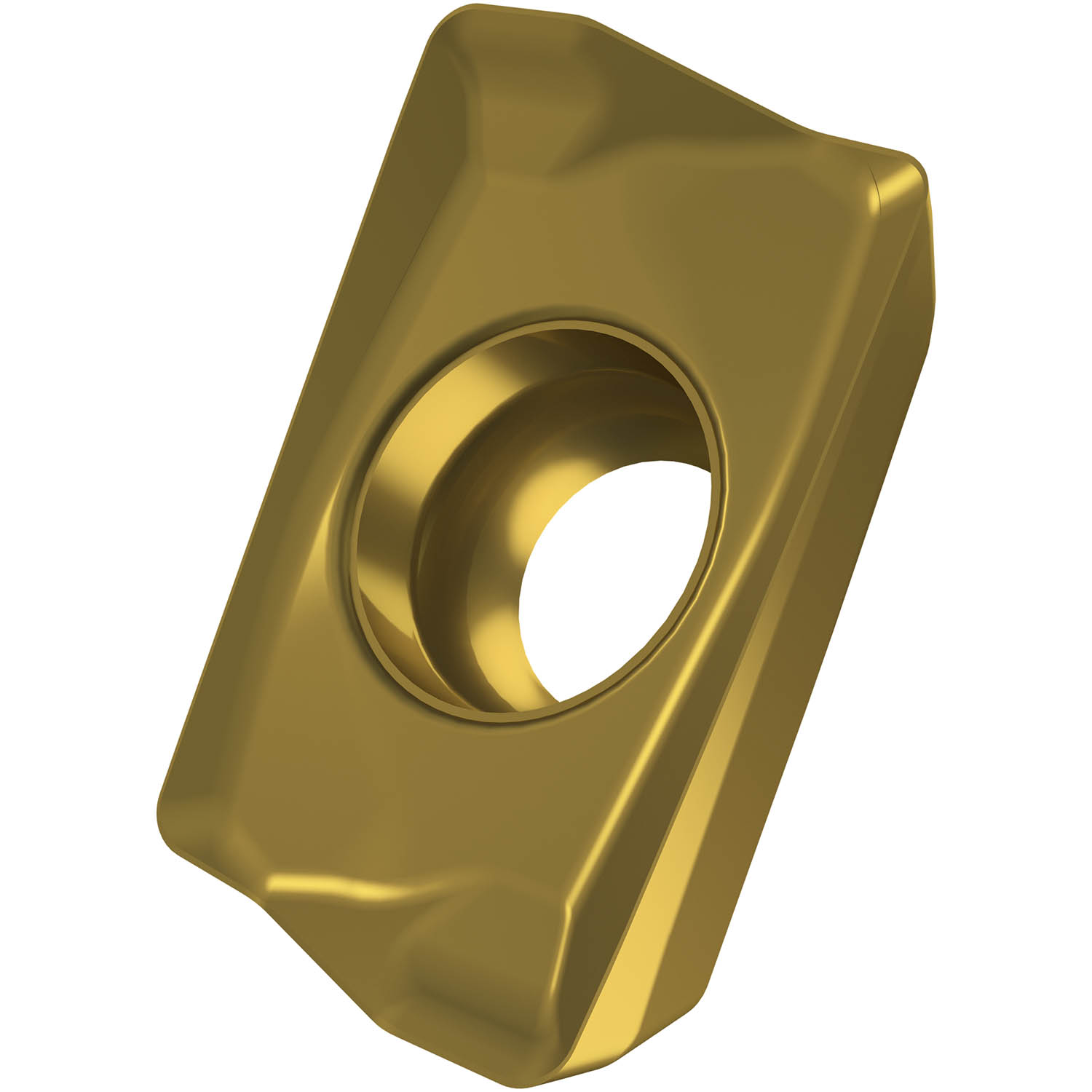

Single-sided milling insert ADMX 0702, 85 Degree parallelogram for a maximum depth of cut of 5.0 mm, with 0.8 mm corner radius, an indexing accuracy according to ISO-tolerance class-M and F geometry with rounded cutting edges and facet, M8330 PVD coated fine grained WC-Co carbide within ISO-grade range P20-P40 for machining of steel with shoulder mills SAD07D.
Product Specifications
| EDP Number | 7799605 |
| Coating Property | 1 |
| Fixing Hole Diameter (mm) | 2.2 mm |
| Fixing Hole Diameter (Inch) | 0.087" |
| Cutting Edge Length (mm) | 6.95 mm |
| Cutting Edge Length (Inch) | 0.274" |
| Insert Width (mm) | 4.482 mm |
| Insert Width (Inch) | 0.176" |
| Insert Thickness (mm) | 2.48 mm |
| Insert Thickness (Inch) | 0.098" |
| Corner Radius (mm) | 0.8 mm |
| Corner Radius (Inch) | 0.031" |
| Coating Process | PVD |
| Coating | M8330 |
| Surface Color | Gold |
| Country of origin | Czech Republic |
