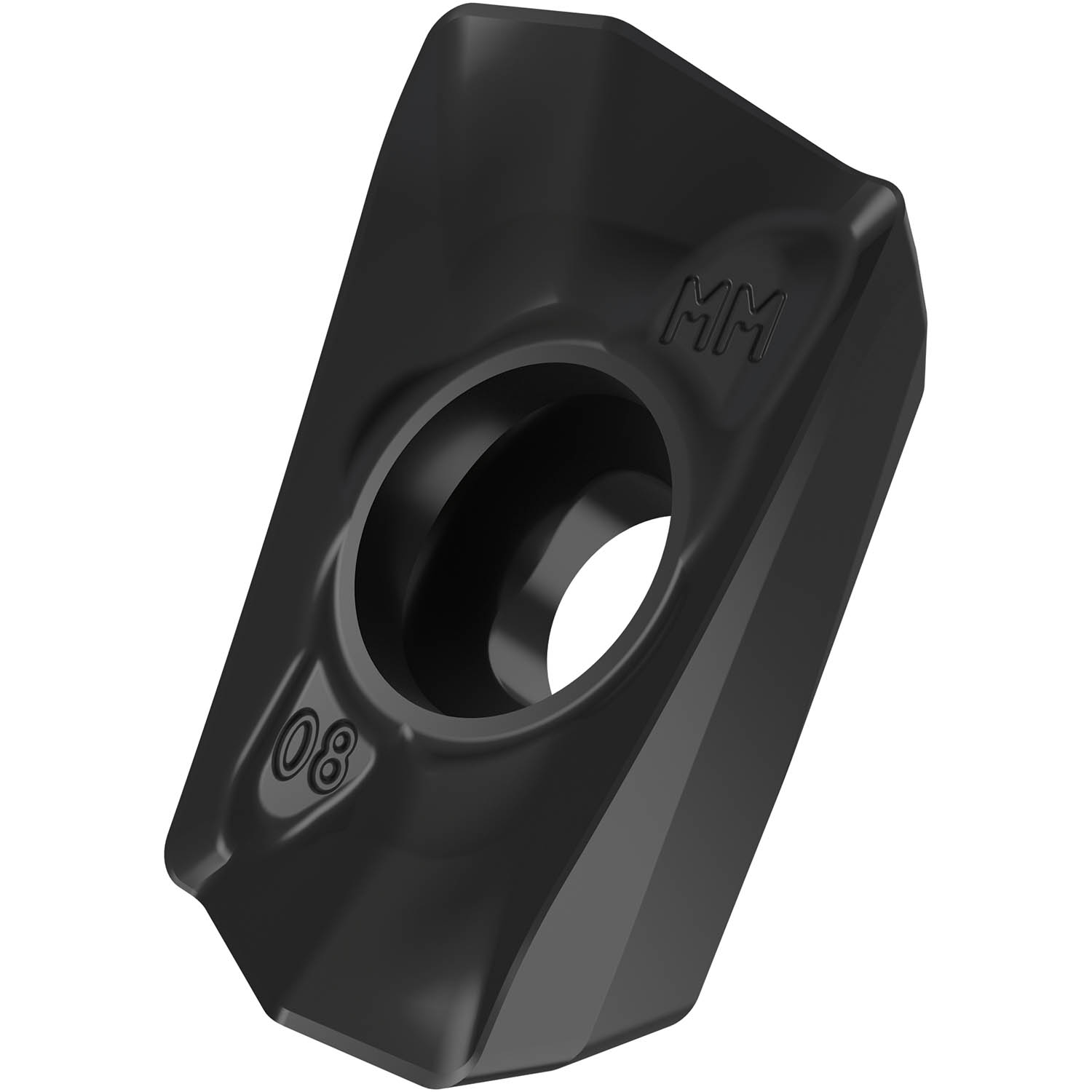

Single-sided milling insert ADMX 1606, 85° parallelogram for a maximum depth of cut of 13.0 mm, with 0.8 mm corner radius, an indexing accuracy according to ISO-tolerance class-M and mm geometry with rounded cutting edges and facet, M8345 PVD coated WC-Co carbide within ISO-grade ranges P30-P50/M30-M40 and S20-S30 for machining of steel, stainless-steel and superalloy with shoulder mills SAD16E or shoulder mills with extended flute J(T)-SAD16E.
Product Specifications
| EDP Number | 7051439 |
| Maximum Depth of Cut (mm) | 13 mm |
| Max Depth of Cut (Inch) | 0.512" |
| Coating Property | 1 |
| Fixing Hole Diameter (mm) | 4.5 mm |
| Fixing Hole Diameter (Inch) | 0.177" |
| Cutting Edge Length (mm) | 16 mm |
| Cutting Edge Length (Inch) | 0.63" |
| Insert Width (mm) | 9.95 mm |
| Insert Width (Inch) | 0.392" |
| Insert Thickness (mm) | 6.25 mm |
| Insert Thickness (Inch) | 0.246" |
| Corner Radius (mm) | 0.8 mm |
| Corner Radius (Inch) | 0.031" |
| Coating Process | PVD |
| Coating | M8345 |
| Surface Color | Purple - Black |
| Min Depth of Cut (mm) | 0.3 mm |
| Min Depth of Cut (Inch) | 0.012" |
