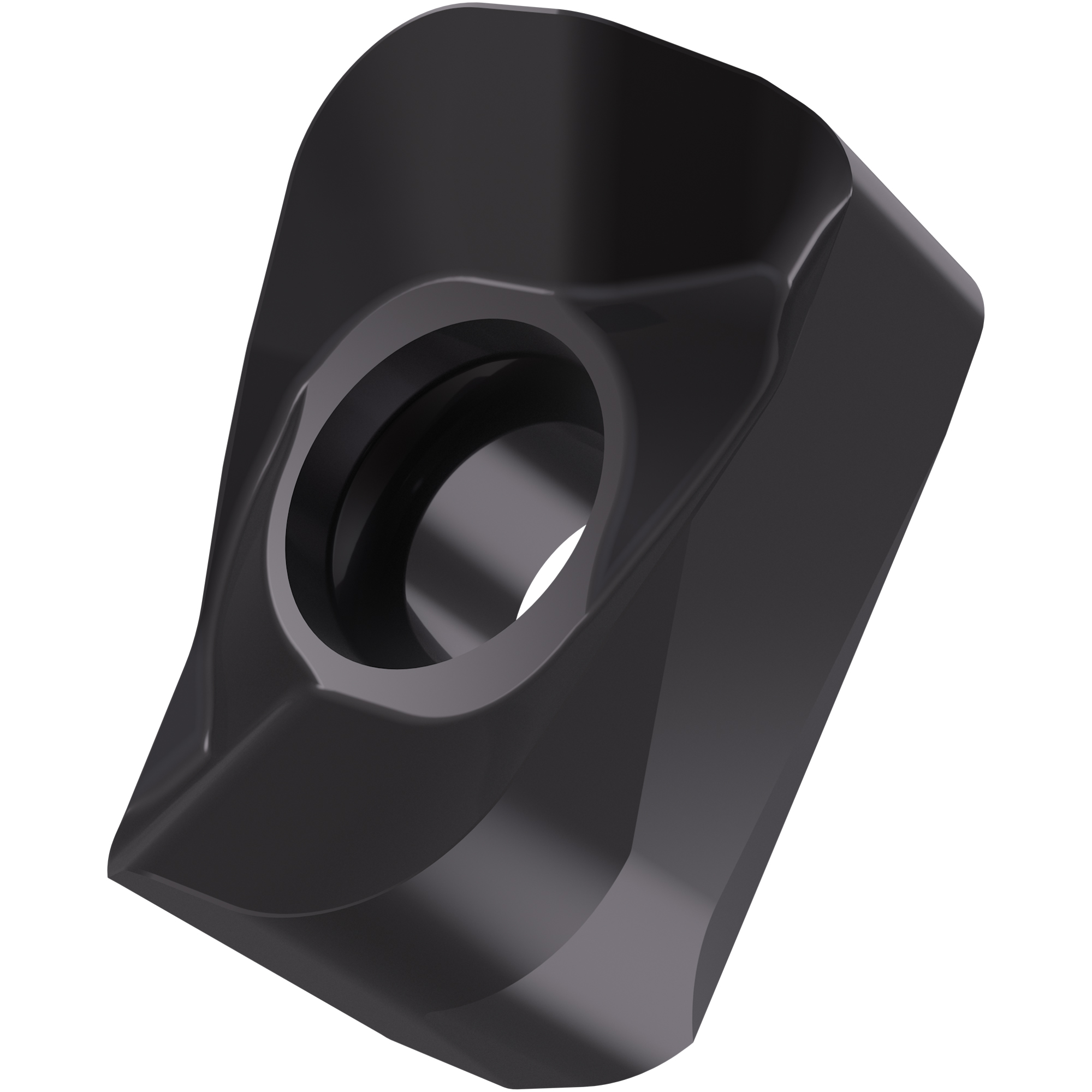

Single-sided milling insert ANHX 10T3, 85° parallelogram for a maximum depth of cut of 3.0 mm, with 2.0 mm corner radius, an indexing accuracy according to ISO-tolerance class-H and F geometry with rounded cutting edges and facet, M8310 PVD coated fine grained WC-Co carbide within ISO-grade range P01-P10 for machining of steel with high feed cutters SBN10.
Product Specifications
| EDP Number | 7451999 |
| Maximum Depth of Cut (mm) | 3 mm |
| Max Depth of Cut (Inch) | 0.118" |
| Coating Property | 1 |
| Fixing Hole Diameter (mm) | 2.76 mm |
| Fixing Hole Diameter (Inch) | 0.109" |
| Cutting Edge Length (mm) | 9.72 mm |
| Cutting Edge Length (Inch) | 0.383" |
| Insert Width (mm) | 5.8 mm |
| Insert Width (Inch) | 0.228" |
| Insert Thickness (mm) | 4.7 mm |
| Insert Thickness (Inch) | 0.185" |
| Corner Radius (mm) | 2 mm |
| Corner Radius (Inch) | 0.079" |
| Coating Process | PVD |
| Coating | M8310 |
| Surface Color | Purple - Black |
| Min Depth of Cut (mm) | 0.1 mm |
| Min Depth of Cut (Inch) | 0.004" |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Ships:
From Partner Facility
interval quantity:
10
