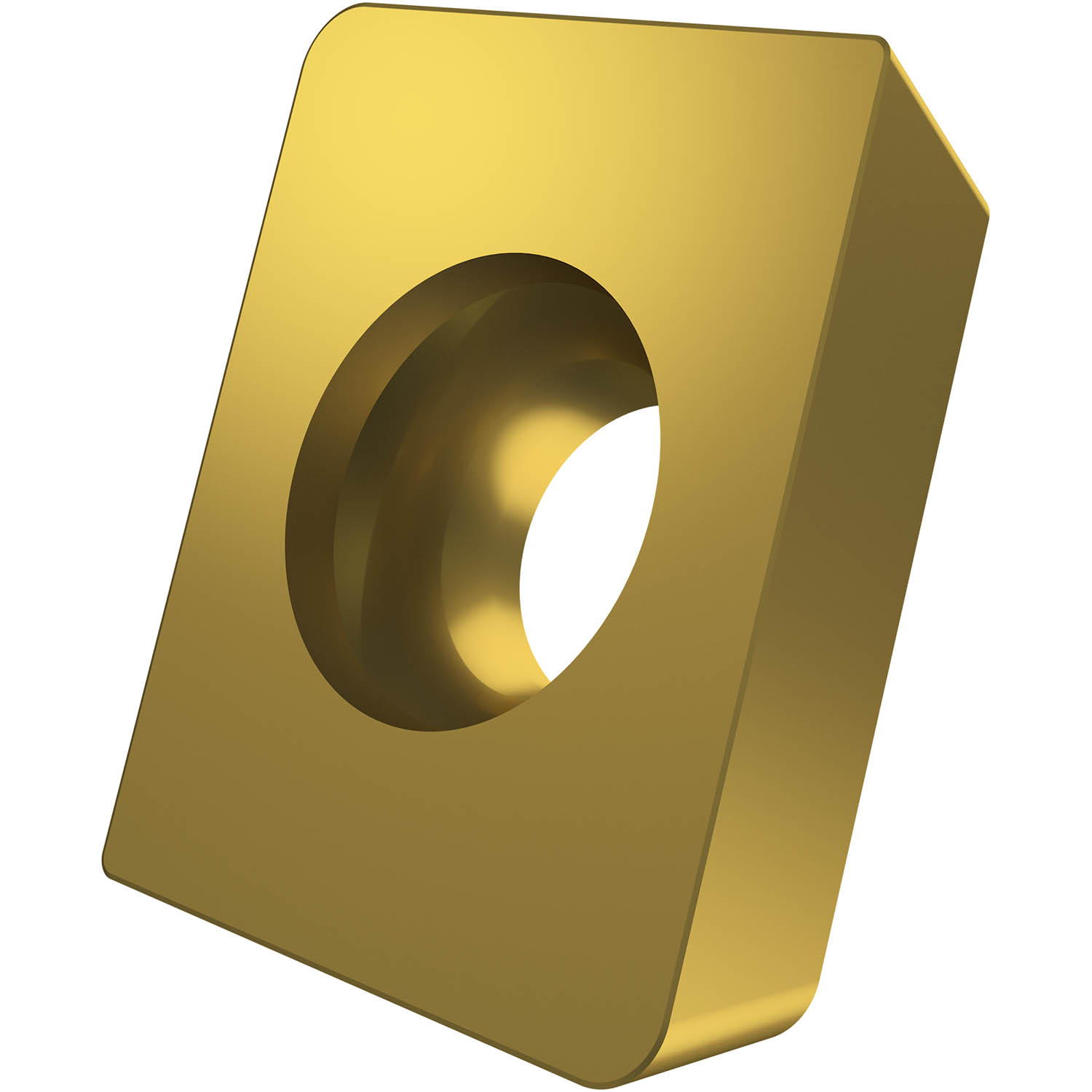

Single-sided milling insert APEW 1504 with a plane rake surface, 85 Degree parallelogram for a maximum depth of cut of 12.0 mm, with 1.2 mm corner radius, an indexing accuracy according to ISO-tolerance class-E with rounded cutting edges, M8330 PVD coated fine grained WC-Co carbide within ISO-grade range K20-K40 for machining of cast-iron with shoulder mills with extended flute J(T)-SSAP.
Product Specifications
| EDP Number | 7447828 |
| Maximum Depth of Cut (mm) | 12 mm |
| Max Depth of Cut (Inch) | 0.472" |
| Coating Property | 1 |
| Fixing Hole Diameter (mm) | 5.5 mm |
| Fixing Hole Diameter (Inch) | 0.217" |
| Cutting Edge Length (mm) | 15.9 mm |
| Cutting Edge Length (Inch) | 0.626" |
| M-Dimension (mm) | 3.71 mm |
| M-Dimension (Inch) | 0.146" |
| Insert Width (mm) | 12.7 mm |
| Insert Width (Inch) | 0.5" |
| Insert Thickness (mm) | 4.76 mm |
| Insert Thickness (Inch) | 0.187" |
| Corner Radius (mm) | 1.2 mm |
| Corner Radius (Inch) | 0.047" |
| Coating Process | PVD |
| Coating | M8330 |
| Surface Color | Gold |
| Min Depth of Cut (mm) | 1.2 mm |
| Min Depth of Cut (Inch) | 0.047" |
| Country of origin | Czech Republic |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Pramet
