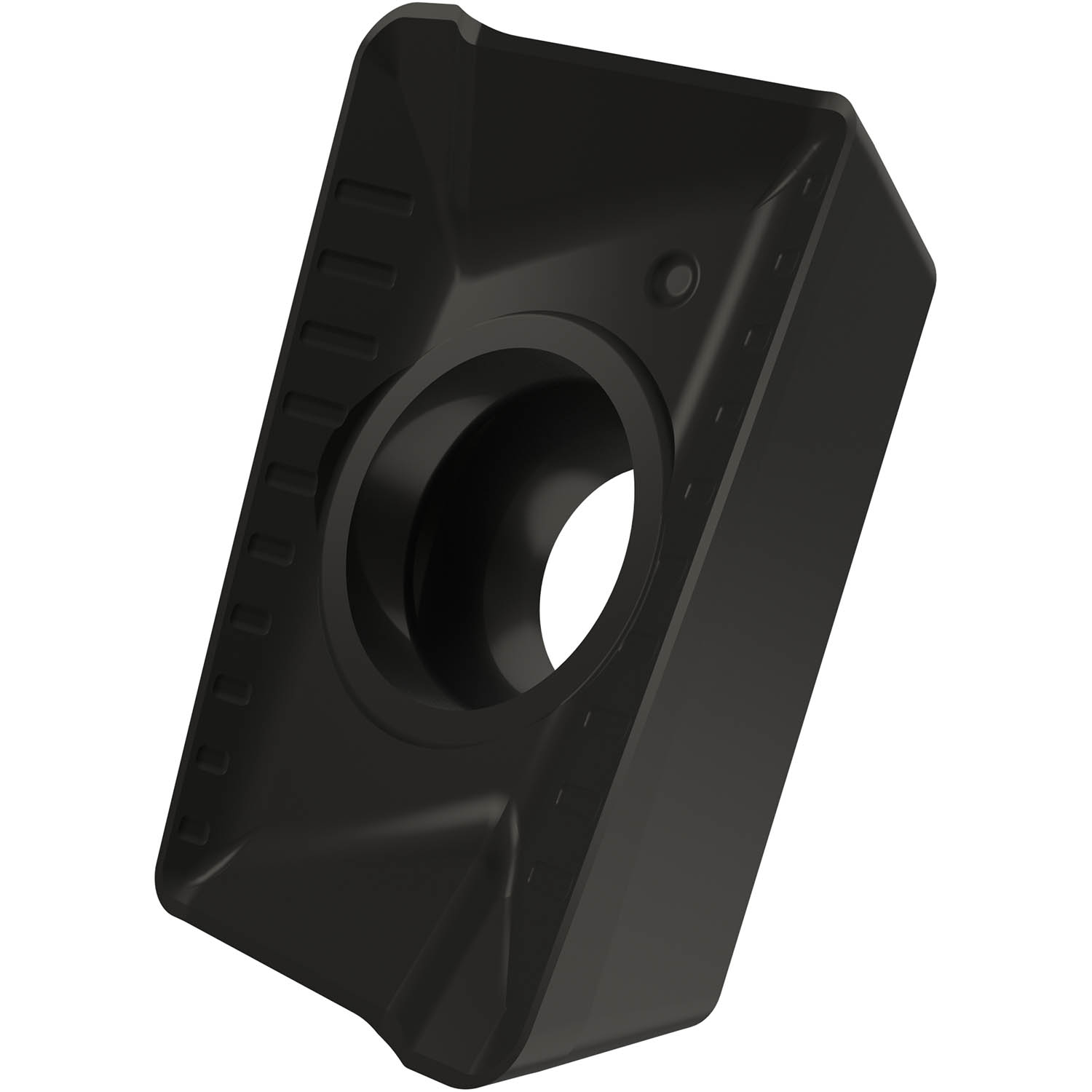

Single-sided milling insert APKT 1003 with chip-breakers, 85 Degree parallelogram for a maximum depth of cut of 9.0 mm, with 0.5 mm corner radius, an indexing accuracy according to ISO-tolerance class-K and M geometry with rounded cutting edges, M9325 MT-CVD coated WC-Co carbide for machining of steel with shoulder mills SAP10D.
Product Specifications
| EDP Number | 6754535 |
| Maximum Depth of Cut (mm) | 9 mm |
| Max Depth of Cut (Inch) | 0.354" |
| Coating Property | 1 |
| Fixing Hole Diameter (mm) | 2.88 mm |
| Fixing Hole Diameter (Inch) | 0.113" |
| Cutting Edge Length (mm) | 11 mm |
| Cutting Edge Length (Inch) | 0.433" |
| Insert Width (mm) | 6.7 mm |
| Insert Width (Inch) | 0.264" |
| Insert Thickness (mm) | 3.5 mm |
| Insert Thickness (Inch) | 0.138" |
| Corner Radius (mm) | 0.5 mm |
| Corner Radius (Inch) | 0.02" |
| Coating Process | MT-CVD |
| Coating | M9325 |
| Surface Color | Black |
| Min Depth of Cut (mm) | 1 mm |
| Min Depth of Cut (Inch) | 0.039" |
| Country of origin | Czech Republic |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Brand:
Pramet
interval quantity:
10
