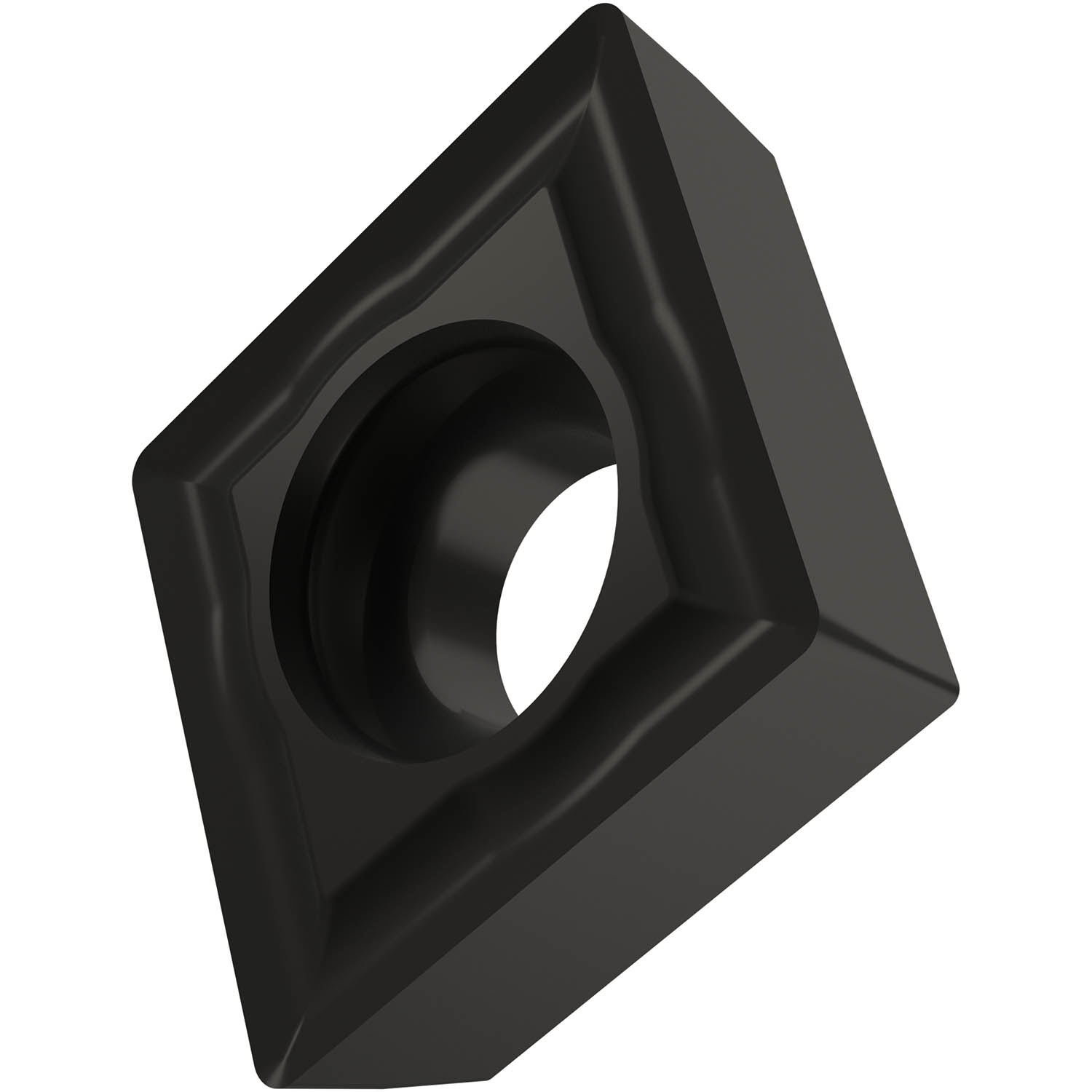

Single-sided positive turning insert, 80ยฐ rhomboid with 7ยฐ clearance, inscribed circle diameter of 7.94 mm, 3.18 mm thick, 0.4 mm nose radius, indexing accuracy according to ISO-tolerance class-M, chip-breaker NF2 with rounded cutting edges, in grade T7335, a MT-CVD coated functionally graded WC-Co carbide, for fine to medium machining.
Product Specifications
| EDP Number | 6756082 |
| Max Depth of Cut (mm) | 3.6 mm |
| Max Depth of cut (Inch) | 0.142" |
| Coating Property | 1 |
| Fixing Hole Diameter (mm) | 3.4 mm |
| Fixing Hole Diameter (Inch) | 0.134" |
| Cutting Edge Length (mm) | 8.1 mm |
| Cutting Edge Length (Inch) | 0.319" |
| Inscribed Circle Diameter (mm) | 7.94 mm |
| Inscribed Circle Diameter (Inch) | 0.313" |
| Insert Thickness (mm) | 3.18 mm |
| Insert Thickness (Inch) | 0.125" |
| Corner Radius (mm) | 0.4 mm |
| Corner Radius (Inch) | 0.016" |
| Coating Process | MT-CVD |
| Coating | T7335 |
| Surface Color | Black |
| Min Depth of Cut (mm) | 0.2 mm |
| Min Depth of Cut (Inch) | 0.008" |
| Chipbreaker Manufacturer's Designation | NF2 |
