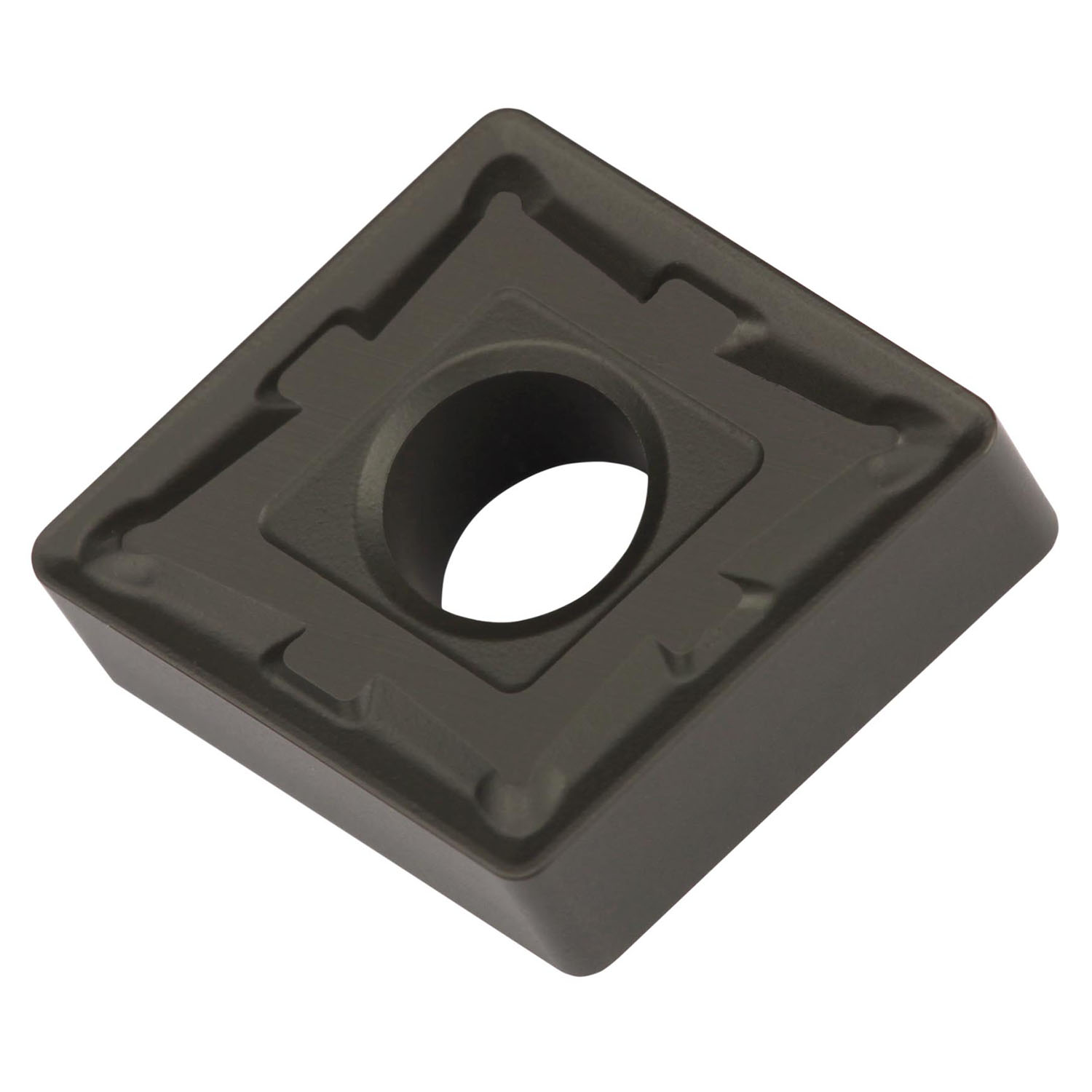

Double-sided negative turning insert, 80° rhomboid with inscribed circle diameter of 19.05 mm, 6.35 mm thick, 1.6 mm nose radius, indexing accuracy according to ISO-tolerance class-M, chip-breaker M with rounded cutting edges, in grade T9325, a MT-CVD coated functionally graded WC-Co carbide within ISO range P15-P35, for fine to heavy machining of steels.
Product Specifications
| EDP Number | 6753909 |
| Max Depth of Cut (mm) | 8 mm |
| Max Depth of cut (Inch) | 0.315" |
| Coating Property | 1 |
| Fixing Hole Diameter (mm) | 7.94 mm |
| Fixing Hole Diameter (Inch) | 0.313" |
| Cutting Edge Length (mm) | 19.3 mm |
| Cutting Edge Length (Inch) | 0.76" |
| Inscribed Circle Diameter (mm) | 19.05 mm |
| Inscribed Circle Diameter (Inch) | 0.75" |
| Insert Thickness (mm) | 6.35 mm |
| Insert Thickness (Inch) | 0.25" |
| Corner Radius (mm) | 1.6 mm |
| Corner Radius (Inch) | 0.063" |
| Coating Process | MT-CVD |
| Coating | T9325 |
| Surface Color | Black |
| Min Depth of Cut (mm) | 1.6 mm |
| Min Depth of Cut (Inch) | 0.063" |
| Chipbreaker Manufacturer's Designation | M |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Ships:
From Partner Facility
Brand:
Pramet
Length (Inch):
49/64"
Length (Decimal Inch):
0.7600"
Length (mm):
19.3mm
Inscribed Circle (Inch):
3/4"
Inscribed Circle (Decimal Inch):
0.7500"
Inscribed Circle (mm):
19.05mm
Thickness (Inch):
1/4"
Thickness (Decimal Inch):
0.2500"
Thickness (mm):
6.35mm
Corner Radius (Inch):
1/16"
Corner Radius (Decimal Inch):
0.0630"
Corner Radius (mm):
1.6mm
interval quantity:
10
