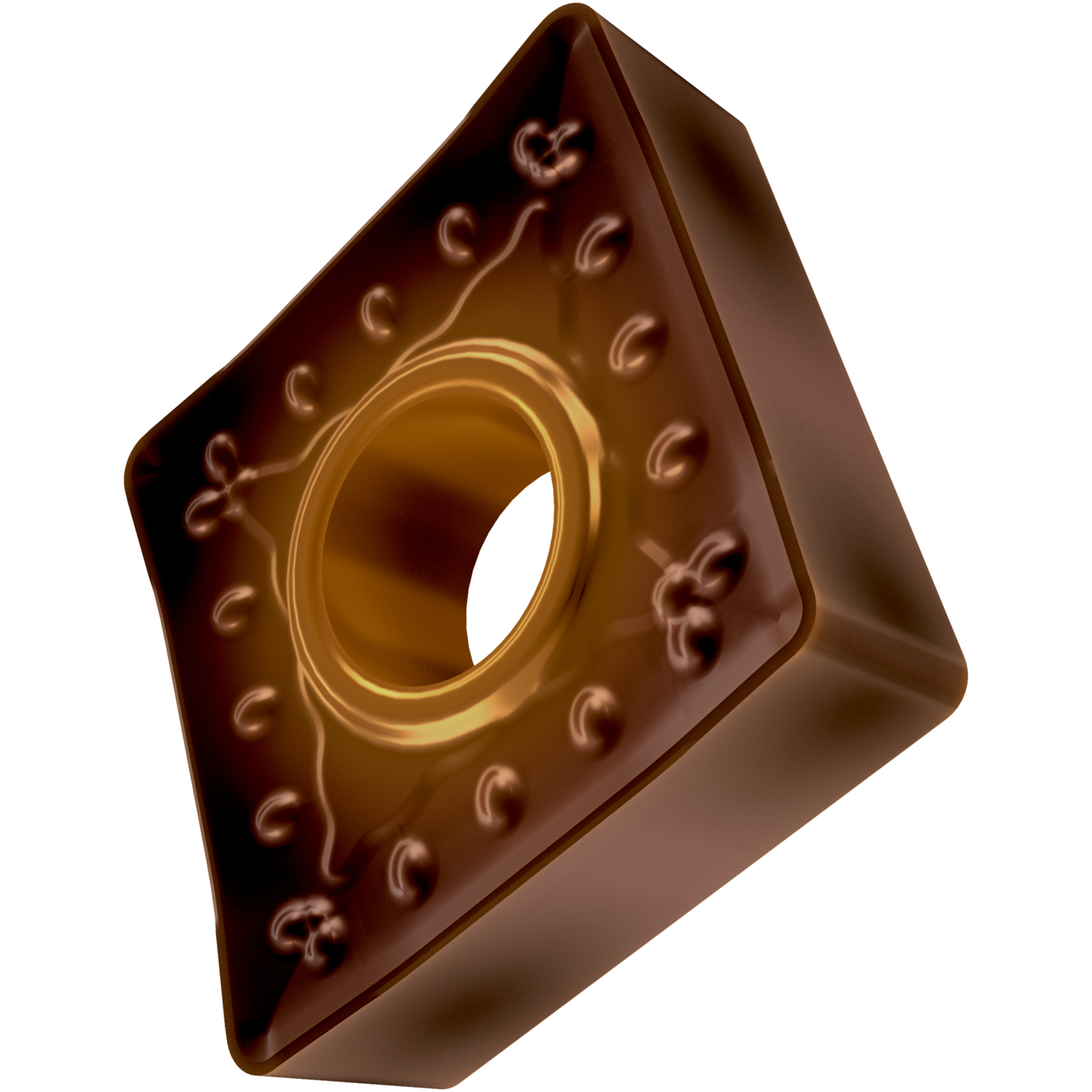

Single-sided negative turning insert, 80° rhomboid with inscribed circle diameter of 15.575 mm, 6.35 mm thick, 1.2 mm nose radius, indexing accuracy according to ISO-tolerance class-M, chip-breaker OR with rounded cutting edges, in grade T8430, a PVD coated fine grained WC-Co carbide within ISO range P25-P40, for medium to extra heavy machining of steels.
Product Specifications
| EDP Number | 7977337 |
| Coating Property | 1 |
| Maximum Axial Groove Outside Diameter (mm) | |
| Fixing Hole Diameter (mm) | 6.35 mm |
| Fixing Hole Diameter (Inch) | 0.25" |
| Cutting Edge Length (mm) | 16.1 mm |
| Cutting Edge Length (Inch) | 0.634" |
| Inscribed Circle Diameter (mm) | 15.875 mm |
| Inscribed Circle Diameter (Inch) | 0.625" |
| Insert Thickness (mm) | 6.35 mm |
| Insert Thickness (Inch) | 0.25" |
| Corner Radius (mm) | 1.2 mm |
| Corner Radius (Inch) | 0.047" |
| Coating Process | PVD |
| Coating | T8430 |
| Surface Color | Golden - Brown |
| Chipbreaker Manufacturer's Designation | OR |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Ships:
From Partner Facility
Brand:
Pramet
Length (Inch):
41/64"
Length (Decimal Inch):
0.6340"
Length (mm):
16.1mm
Inscribed Circle (Inch):
5/8"
Inscribed Circle (Decimal Inch):
0.6250"
Inscribed Circle (mm):
15.875mm
Thickness (Inch):
1/4"
Thickness (Decimal Inch):
0.2500"
Thickness (mm):
6.35mm
Corner Radius (Inch):
3/64"
Corner Radius (Decimal Inch):
0.0470"
Corner Radius (mm):
1.2mm
interval quantity:
10
