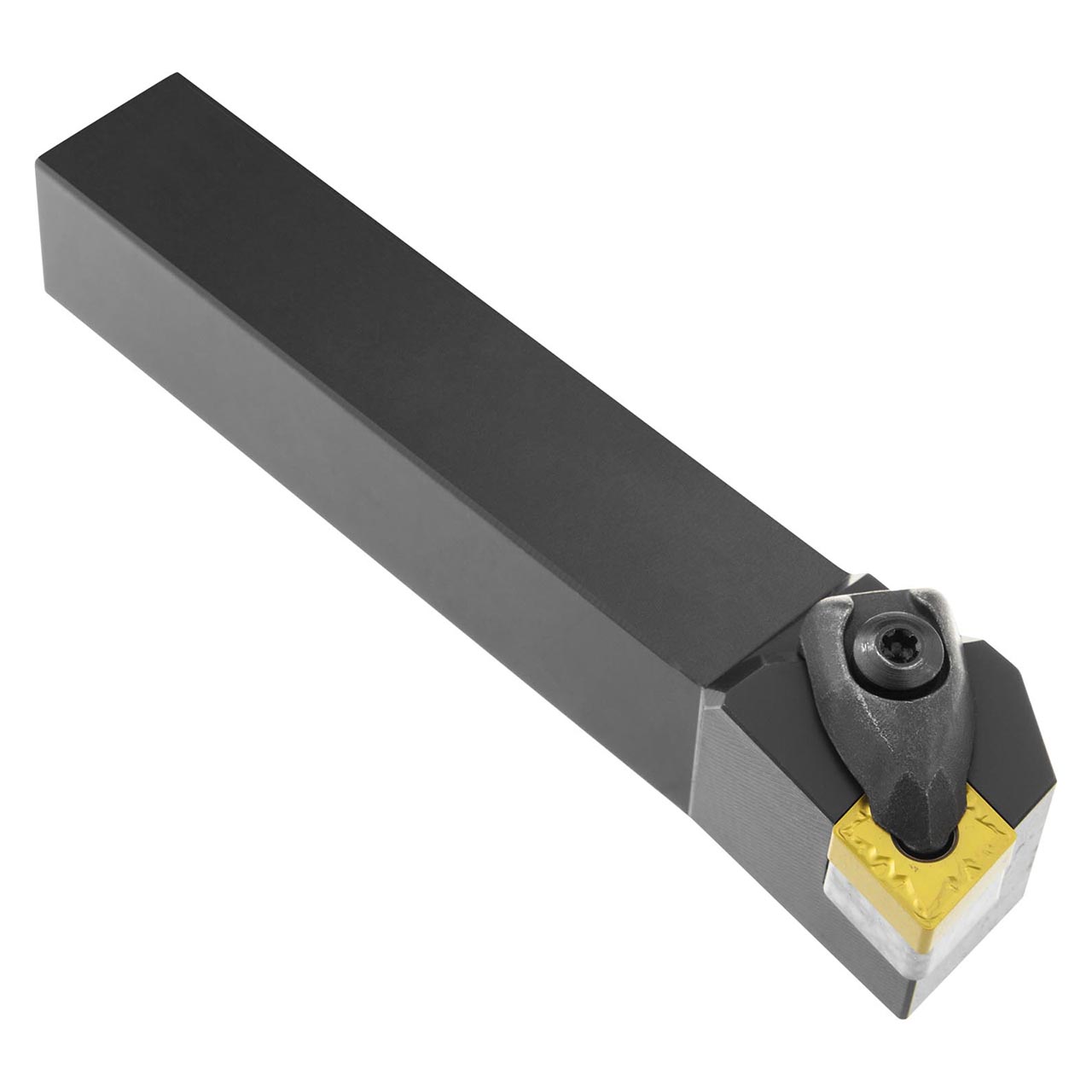

Double clamp turning tool for holding a 80 Degree rhombus negative insert with an inscribed circle diameter of 12.7 mm, 4.76 mm thick (ISO designation CN.. 1204.. ), left hand 95 Degree side and end cutting with off-set shank, 16 mm tool height x 16 mm width x 100 mm long for taper turning, face turning with and without shoulder and longitudinal turning with and without shoulder.
Product Specifications
| EDP Number | 7028419 |
| Functional Height (mm) | 16 mm |
| Functional Width (mm) | |
| Head Bottom Offset Width (mm) | 4.5 mm |
| Orthogonal Rake Angle | -6 |
| Inclination Angle | -6 |
| Maximum Axial Groove Outside Diameter (mm) | |
| Shank Height (mm) | 16 mm |
| Shank Width (mm) | 16 mm |
| Functional Length (mm) | 100 mm |
| Head Length (mm) | 32.2 mm |
| Clamping Type Code | System D |
| Direction of Tool | Left |
| Country of origin | Czech Republic |
