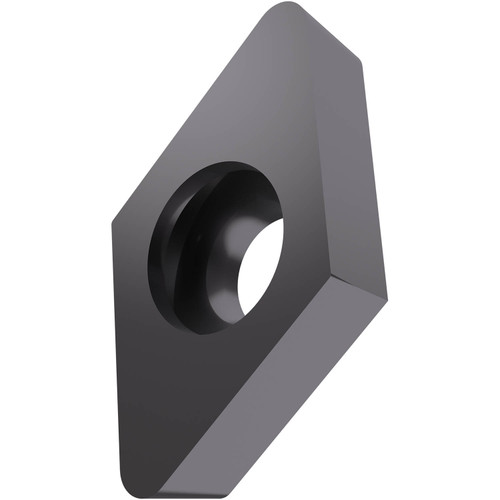

Turning insert with PCD tipped corner, 55ยฐ rhomboid with 7ยฐ clearance and inscribed circle diameter of 9.525 mm, 3.97 mm thick, 0.8 mm nose radius, indexing accuracy according to ISO-tolerance class-M, sharp cutting edges, in grade PD1, an uncoated polycrystaline diamond within ISO range N05-N25, for high-speed machining of non-ferrous metals.
Product Specifications
| EDP Number | 6751821 |
| Max Depth of Cut (mm) | 2 mm |
| Max Depth of cut (Inch) | 0.079" |
| Fixing Hole Diameter (mm) | 4.4 mm |
| Fixing Hole Diameter (Inch) | 0.173" |
| Cutting Edge Length (mm) | 11.6 mm |
| Cutting Edge Length (Inch) | 0.457" |
| Inscribed Circle Diameter (mm) | 9.525 mm |
| Inscribed Circle Diameter (Inch) | 0.375" |
| Insert Thickness (mm) | 3.97 mm |
| Insert Thickness (Inch) | 0.156" |
| Corner Radius (mm) | 0.8 mm |
| Corner Radius (Inch) | 0.031" |
| Coating | PD1 |
| Surface Color | Dark Grey |
| Min Depth of Cut (mm) | 0.8 mm |
| Min Depth of Cut (Inch) | 0.031" |
| Chipbreaker Manufacturer's Designation | No chipbreaker |
