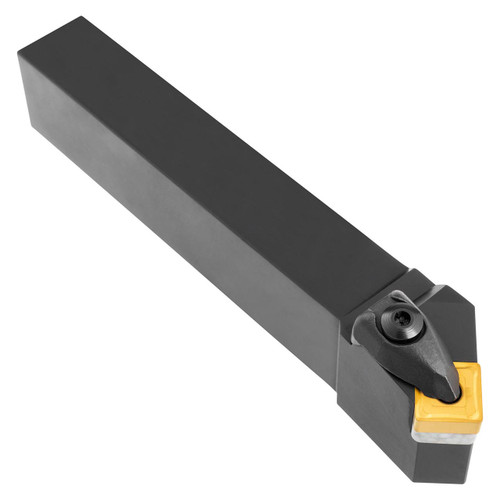

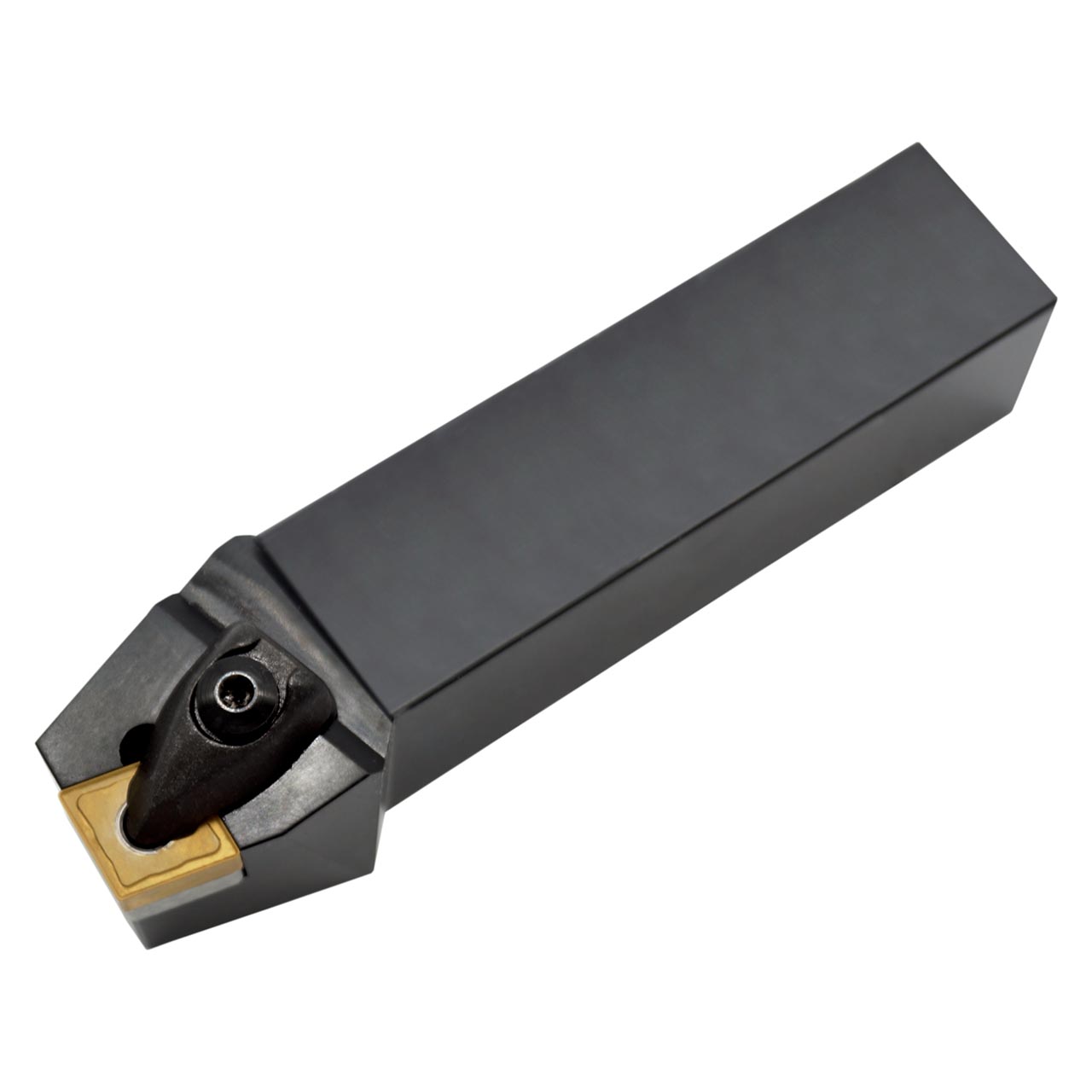

Double clamp turning tool for holding a 80 Degree rhombus negative insert with an inscribed circle diameter of 5/8'', 1/4'' thick (ANSI designation CN.. 54. ), right hand 75 Degree side cutting with off-set shank, 1.1/4'' tool height x 1.1/4'' width x 6'' long for chamfering, taper turning and longitudinal turning without shoulder.
Product Specifications
| EDP Number | 6788541 |
| Functional Height (Inch) | 1.25" |
| Functional Width (Inch) | 1.291" |
| Orthogonal Rake Angle | -6 |
| Inclination Angle | -6 |
| Maximum Axial Groove Outside Diameter (mm) | |
| Shank Width (Inch) | |
| Functional Length (Inch) | 6" |
| Head Length (Inch) | 1.64" |
| Country of origin | Czech Republic |
Warning:
This product can expose you to materials and/or chemicals including arsenic, lead, and other materials and/or chemicals which are known to the state of California to cause cancer and/or reproductive harm.
For more information, visit www.P65Warnings.ca.gov
Related Products
Ships:
From Partner Facility
Brand:
Pramet
Rake Angle:
-6
Shank Width (Inch):
1-1/4"
Shank Width (Decimal Inch):
1.2500"
Shank Width (mm):
31.75mm
