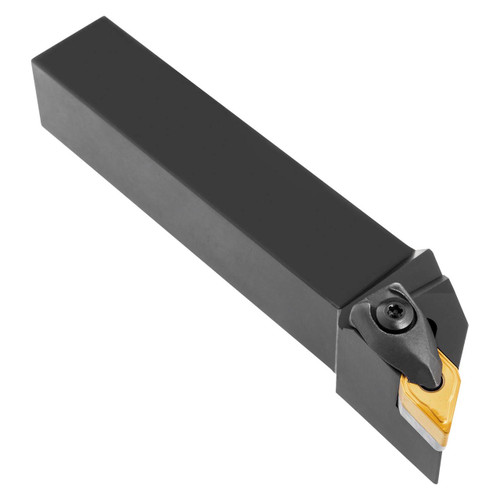

Double clamp turning tool for holding a 55 Degree rhombus negative insert with an inscribed circle diameter of 3/8'', 3/16'' thick (ANSI designation DN.. 33. ), right hand 93 Degree side cutting with off-set shank, 3/4'' tool height x 3/4'' width x 5'' long for taper turning, single and multi-directional copy turning and longitudinal turning with and without shoulder.
Product Specifications
| EDP Number | 6788569 |
| Functional Height (Inch) | 0.75" |
| Functional Width (Inch) | 1" |
| Orthogonal Rake Angle | -6 |
| Inclination Angle | -6 |
| Maximum Axial Groove Outside Diameter (mm) | |
| Shank Width (Inch) | |
| Functional Length (Inch) | 5" |
| Head Length (Inch) | 1.19" |
| Clamping Type Code | System D |
| Hand (Cutting Direction) | Right |
| Direction of Tool | Right |
| Country of origin | Czech Republic |
