Pramet DWLNR 10 3B | 0.875" Functional Width Indexable Turning Toolholder

$84.40 $81.63
(You save $2.77)
Ships:
From Partner Facility
Ships:
From Partner Facility
Brand:
Pramet
Rake Angle:
-6
Shank Width (Inch):
5/8"
Shank Width (Decimal Inch):
0.6250"
Shank Width (mm):
15.88mm
Shank Height (Inch):
5/8"
Shank Height (Decimal Inch):
0.6250"
Shank Height (mm):
15.88mm
interval quantity:
1
SKU:
23154230
UPC:
Weight:
0.60 LBS
Minimum Purchase:
1 unit
Shipping:
Calculated at Checkout

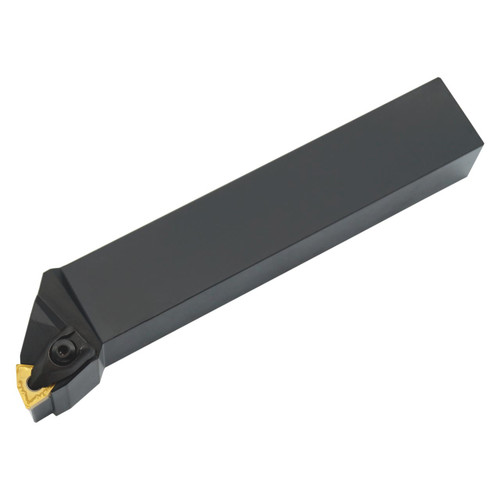

Double clamp turning tool for holding a 80 Degree trigon negative insert with an inscribed circle diameter of 3/8'', 3/16'' thick (ANSI designation WN.. 33. ), right hand 95 Degree side and end cutting with off-set shank, 5/8'' tool height x 5/8'' width x 4.1/2'' long for taper turning, face turning with and without shoulder and longitudinal turning with and without shoulder.

Product Specifications
EDP Number6788629
Functional Height (Inch)0.625"
Functional Width (Inch)0.875"
Orthogonal Rake Angle-6
Inclination Angle-6
Maximum Axial Groove Outside Diameter (mm)
Shank Height (Inch)0.625"
Shank Width (Inch)
Functional Length (Inch)4.5"
Head Length (Inch)1.07"
Clamping Type CodeSystem D
Country of originCzech Republic
