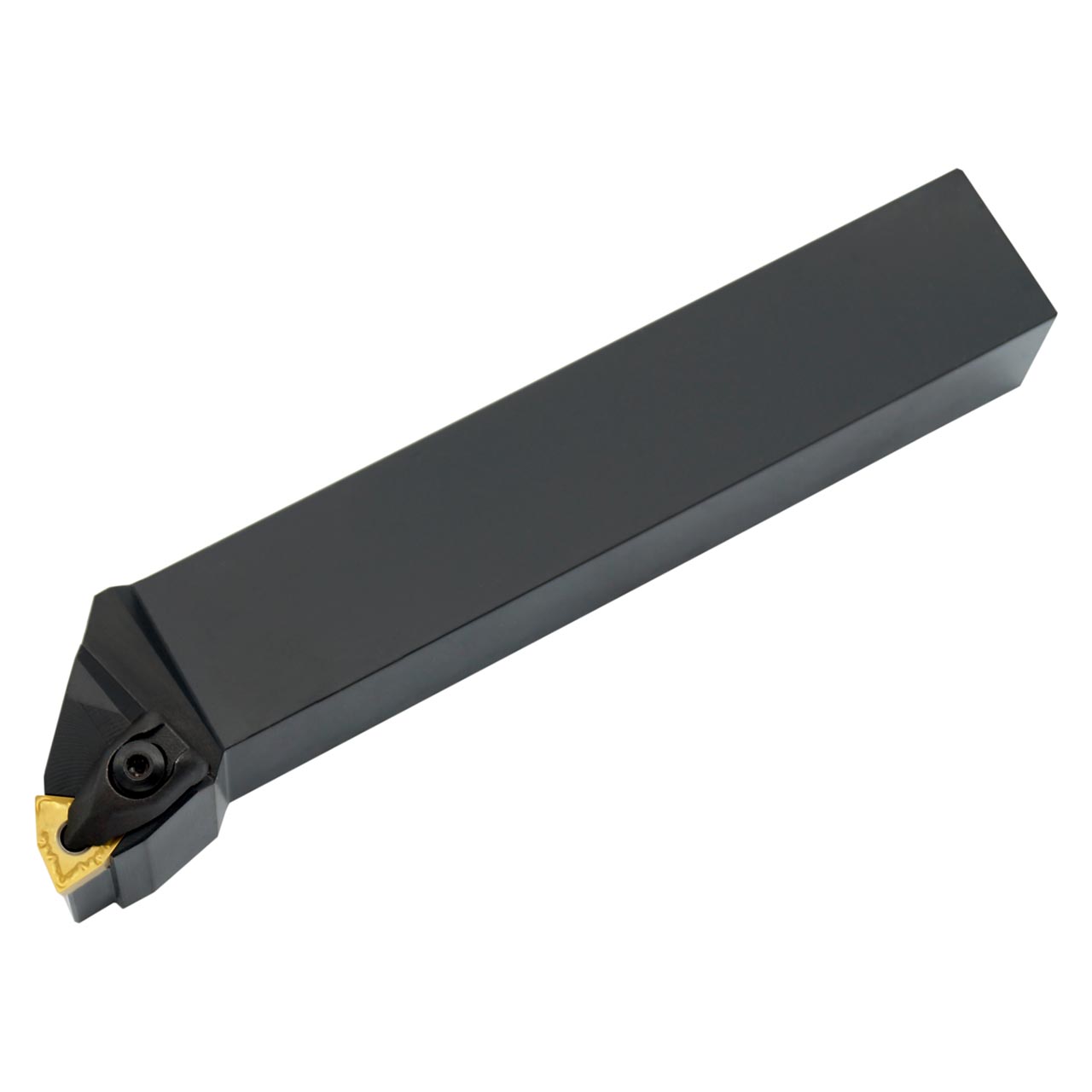

Double clamp turning tool for holding a 80 Degree trigon negative insert with an inscribed circle diameter of 3/8'', 3/16'' thick (ANSI designation WN.. 33. ), right hand 95 Degree side and end cutting with off-set shank, 3/4'' tool height x 3/4'' width x 5'' long for taper turning, face turning with and without shoulder and longitudinal turning with and without shoulder.
Product Specifications
| EDP Number | 6788630 |
| Functional Height (Inch) | 0.75" |
| Functional Width (Inch) | 1" |
| Orthogonal Rake Angle | -6 |
| Inclination Angle | -6 |
| Maximum Axial Groove Outside Diameter (mm) | |
| Shank Height (Inch) | 0.75" |
| Shank Width (Inch) | |
| Functional Length (Inch) | 5" |
| Head Length (Inch) | 1.95" |
| Clamping Type Code | System D |
| Country of origin | Czech Republic |
